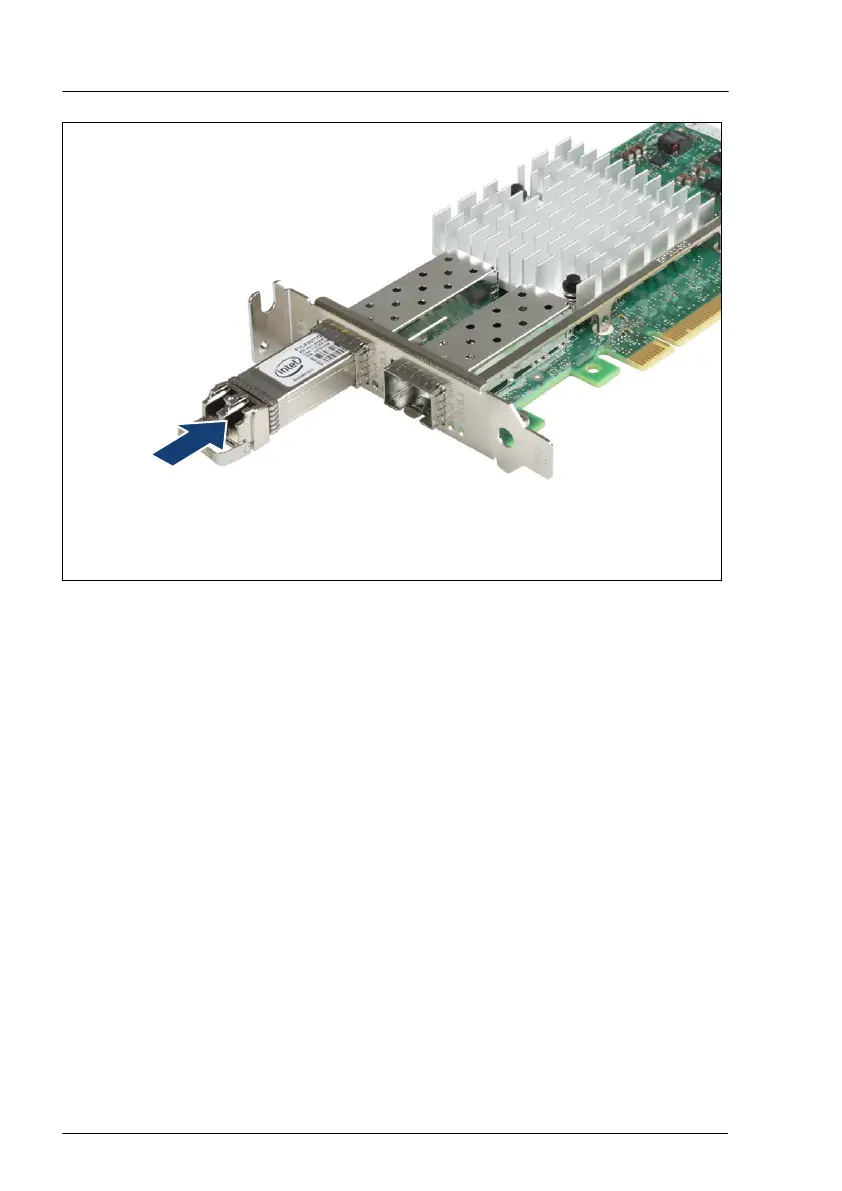

Figure 78: Inserting the SFP+ transceiver module

▶

Insert and slide the SFP+ transceiver module into the socket connector as

far as it will go.

Expansion cards and backup units

176 Upgrade and Maintenance Manual RX4770 M5
