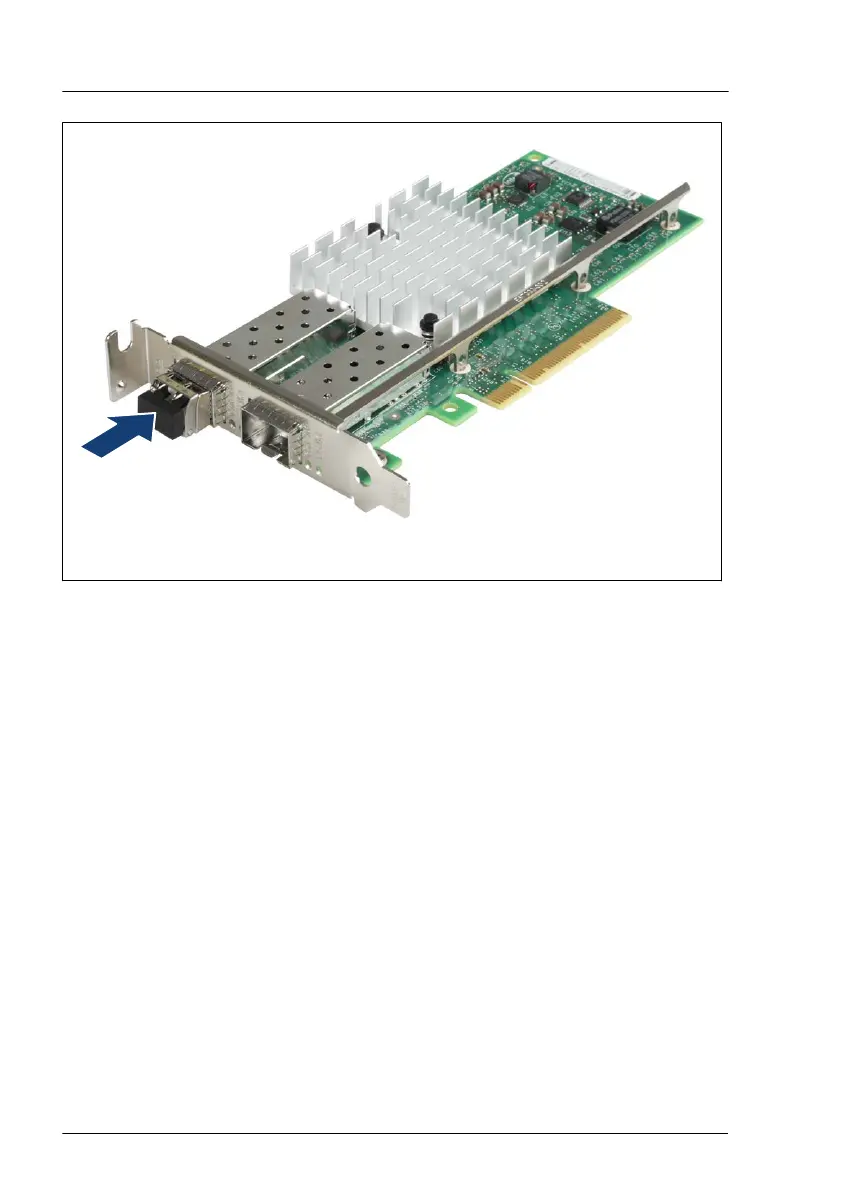

Figure 80: Installing the protective cap

▶

If the SFP+ transceiver module is not immediately connected, attach the

protective cap to the SFP+ transceiver module.

Expansion cards and backup units

178 Upgrade and Maintenance Manual RX4770 M5
