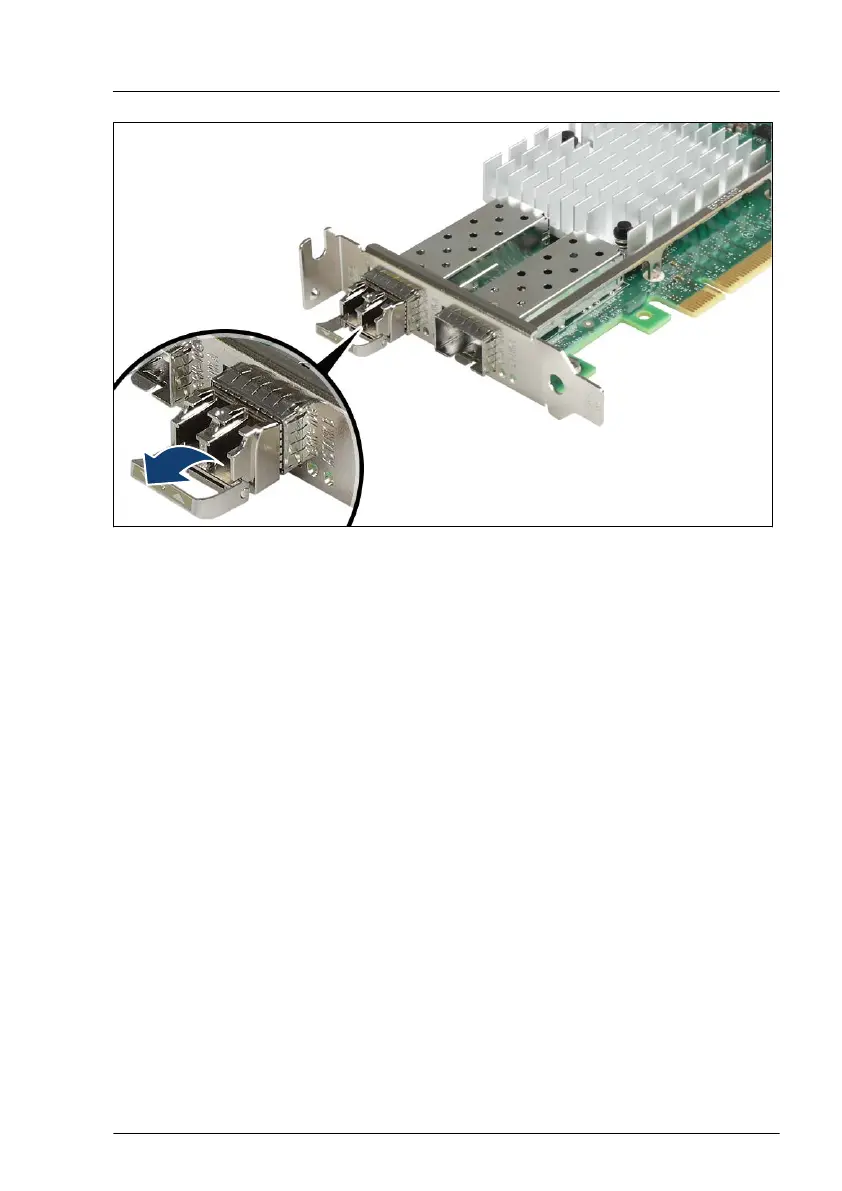

Figure 83: Unlatching the locking bail
▶
Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector
.
Expansion cards and backup units
RX4770 M5 Upgrade and Maintenance Manual 181
