Fujitsu PRIMERGY RX4770 M5 User Manual

Removing the OCP module

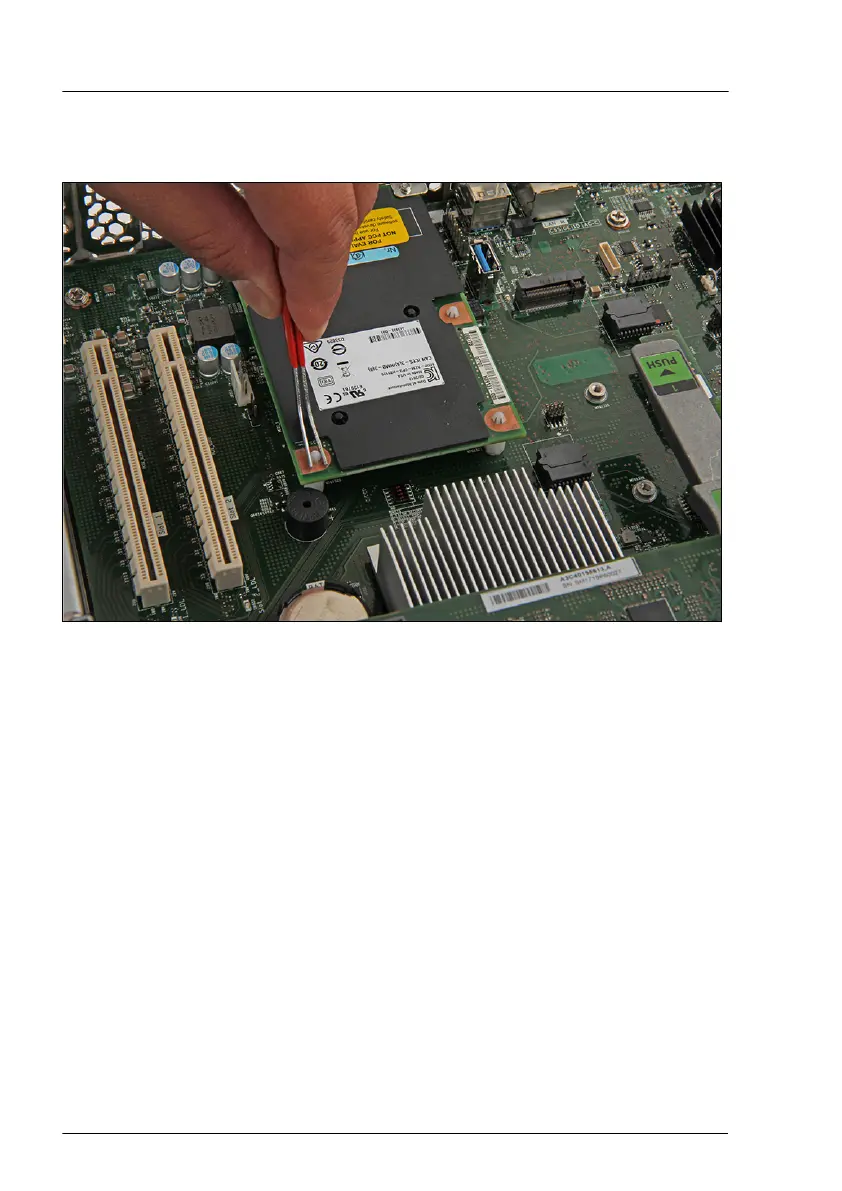

Figure 88: Removing the OCP module
▶
Pull the rivets using a forceps to remove the OCP module.
▶
Remove the OCP module.
Concluding steps
▶
"Installing the OCP dummy cover" on page
67.
▶
Install riser module 3/4, see "Installing the riser module 3/4 and 6/7" on
page 62.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord (AC PSU)" on page 58.
▶
"Switching on the server" on page 59.
Expansion cards and backup units
186 Upgrade and Maintenance Manual RX4770 M5
