Connect the white cable (1) to the two Infiniband ConnectX6 controllers (2).

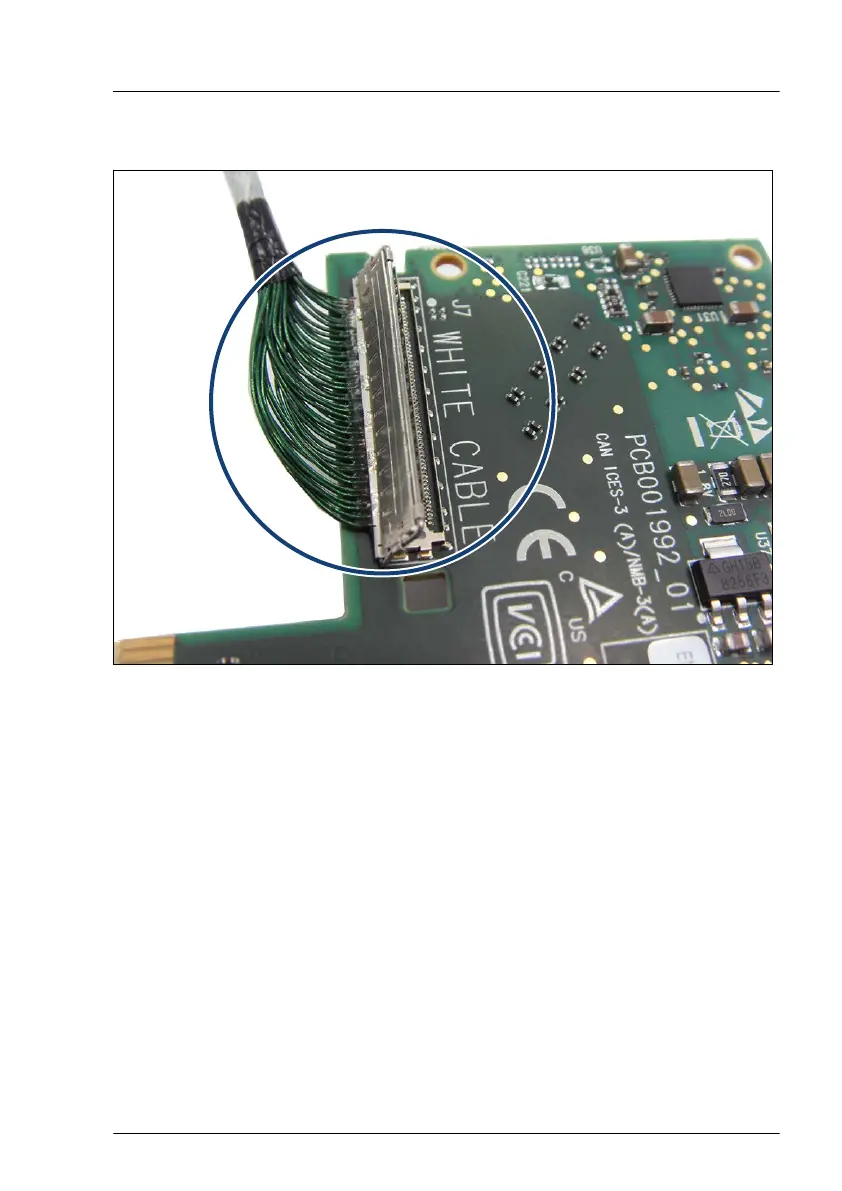

Figure 101: Infiniband ConnectX6 - connecting the white cable
▶
Press down the clip of the white cable to fix the cable on the controller
.
Expansion cards and backup units
RX4770 M5 Upgrade and Maintenance Manual 201
