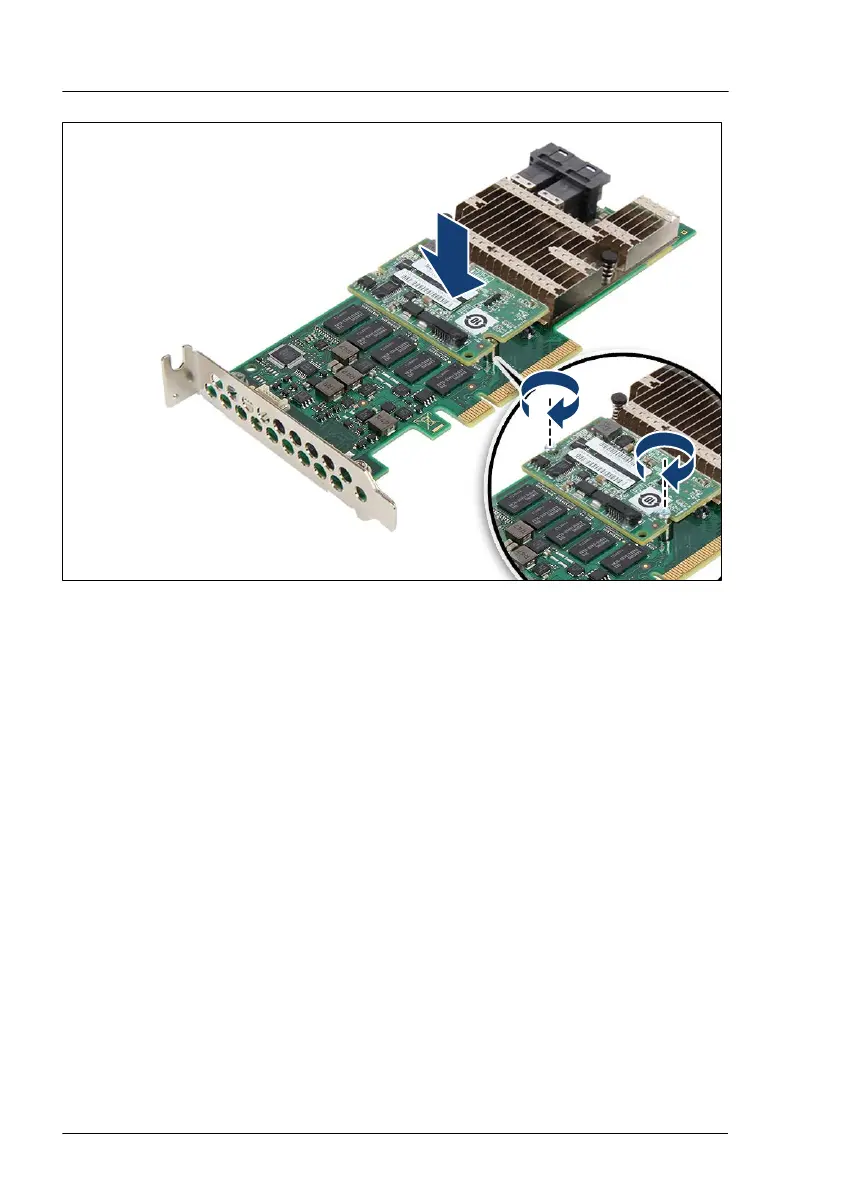

Figure 114: Installing the TFM (B)

▶

Fasten the TFM to the RAID controller with the two screws from the TFM kit.

Expansion cards and backup units

218 Upgrade and Maintenance Manual RX4770 M5
