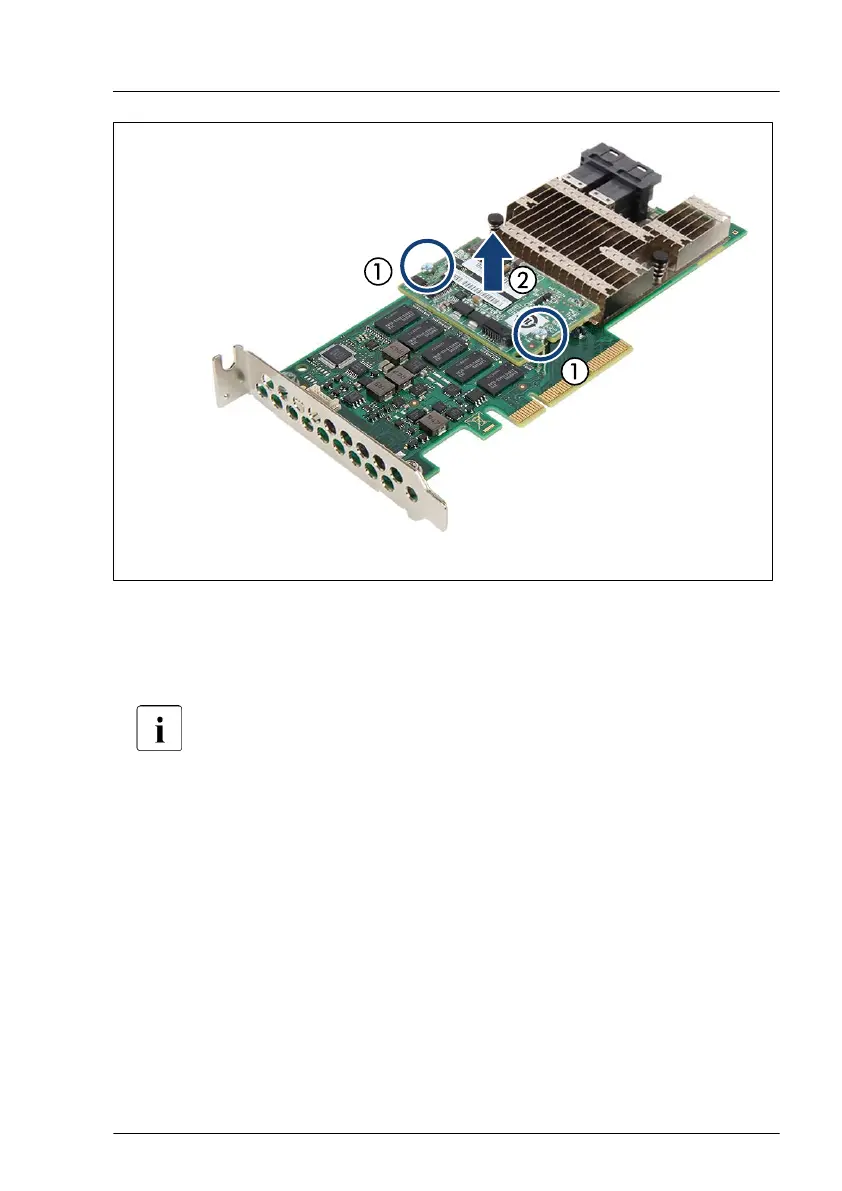

Figure 117: Removing the TFM
▶
Remove the two screws (1).
▶
Remove the TFM (2).
Note for replacing the TFM: The two spacer bolts can remain on the
RAID controller
.
Concluding steps
▶
"Reassembling" on page
53.
▶
"Connecting the power cord (AC PSU)" on page 58.
▶
"Switching on the server" on page 59.
