Fujitsu PRIMERGY RX4770 M5 User Manual

▶
Remove the air duct from the top system board. see "Removing the CPU
air duct" on page 72.
▶
"Removing the fan cage" on page
69.
▶
"Removing the riser module 3/4 and 6/7" on page 61.
▶
"Removing the top system board holder" on page 74.
▶
Remove the air duct from the bottom system board, see "Removing the
CPU air duct" on page 72.
For memory slots from N to Z valid for the top system board.
▶
"Suspending BitLocker functionality" on page 85.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the CPU air duct" on page 72.
Removing a memory module

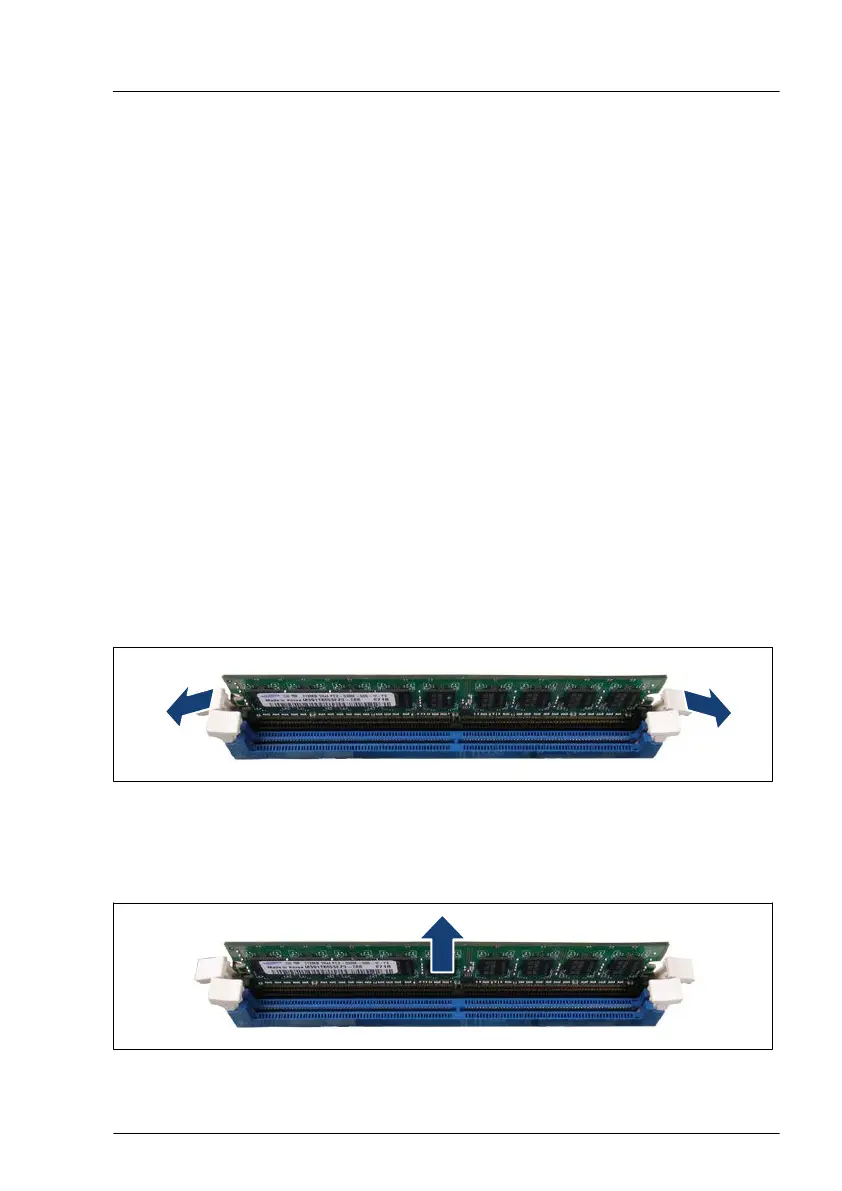

Figure 140: Removing memory modules (A)
▶
Eject the desired memory module by pressing out the securing clips at each
end of the memory slot.
Figure 141: Removing memory modules (B)
Main memory
RX4770 M5 Upgrade and Maintenance Manual 263
