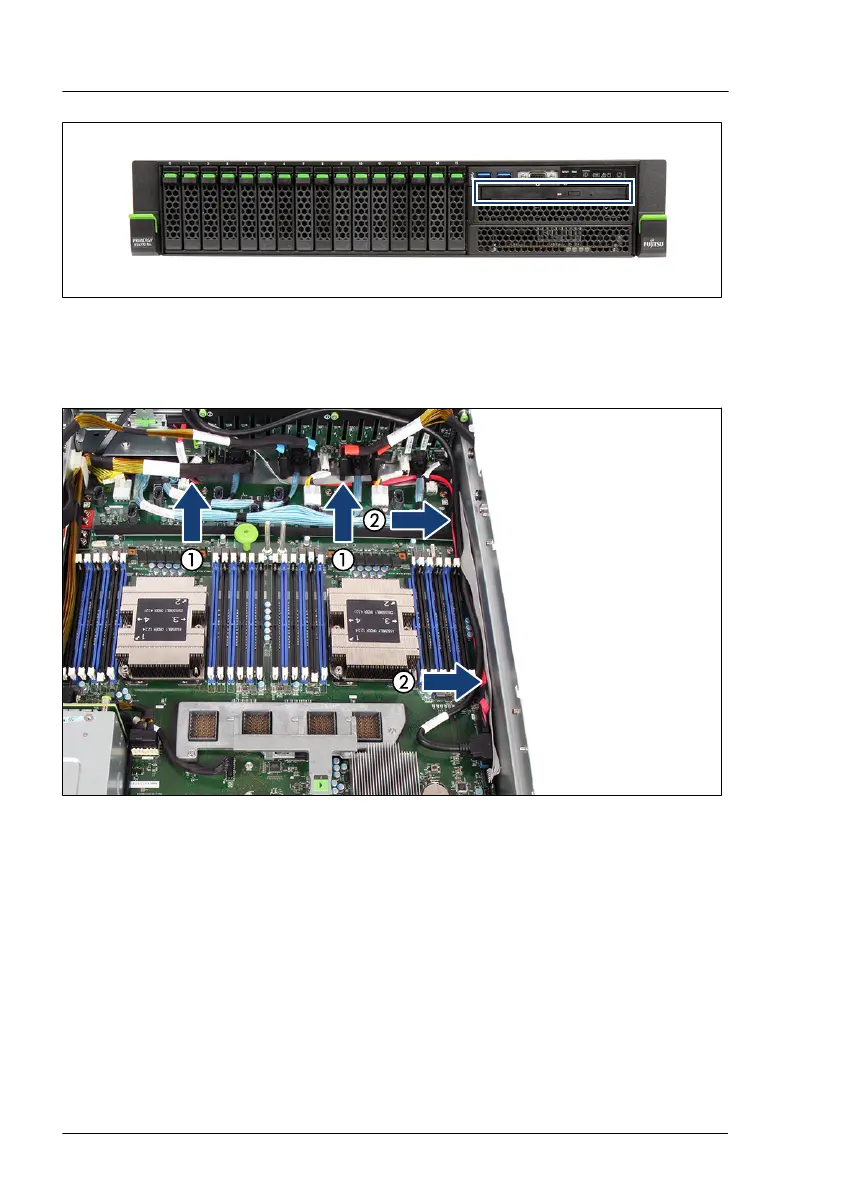

Figure 157: Position of the ODD bay
Routing the ODD cables
Figure 158: Routing the ODD cables
The SATA ODD cable is run under the mini-SAS cables at the HDD backplane
(1) and at the right inner side of the chassis (2).
Accessible drives
