"Getting access to the component" on page
47.
▶
If applicable, remove the riser module 6/7, see "Removing the riser module
3/4 and 6/7" on page 61.
▶
"Removing the riser module" on page 64.
Installing the iRMC microSD card

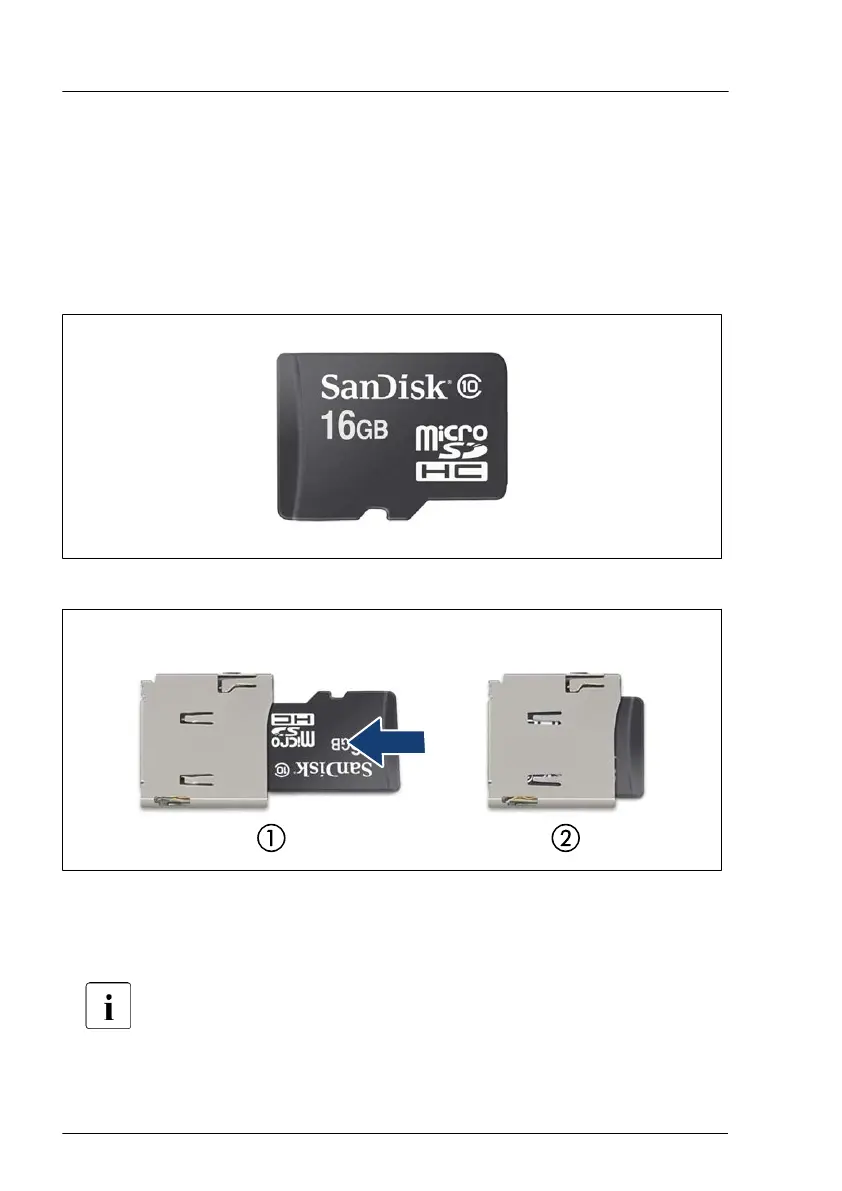

Figure 183: iRMC microSD card
Figure 184: Installing the iRMC microSD card
▶
With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
The onboard position of the microSD card slot can be found in
"System board" on page
406.
System board and components
328 Upgrade and Maintenance Manual RX4770 M5
