Removing the M.2 SSD

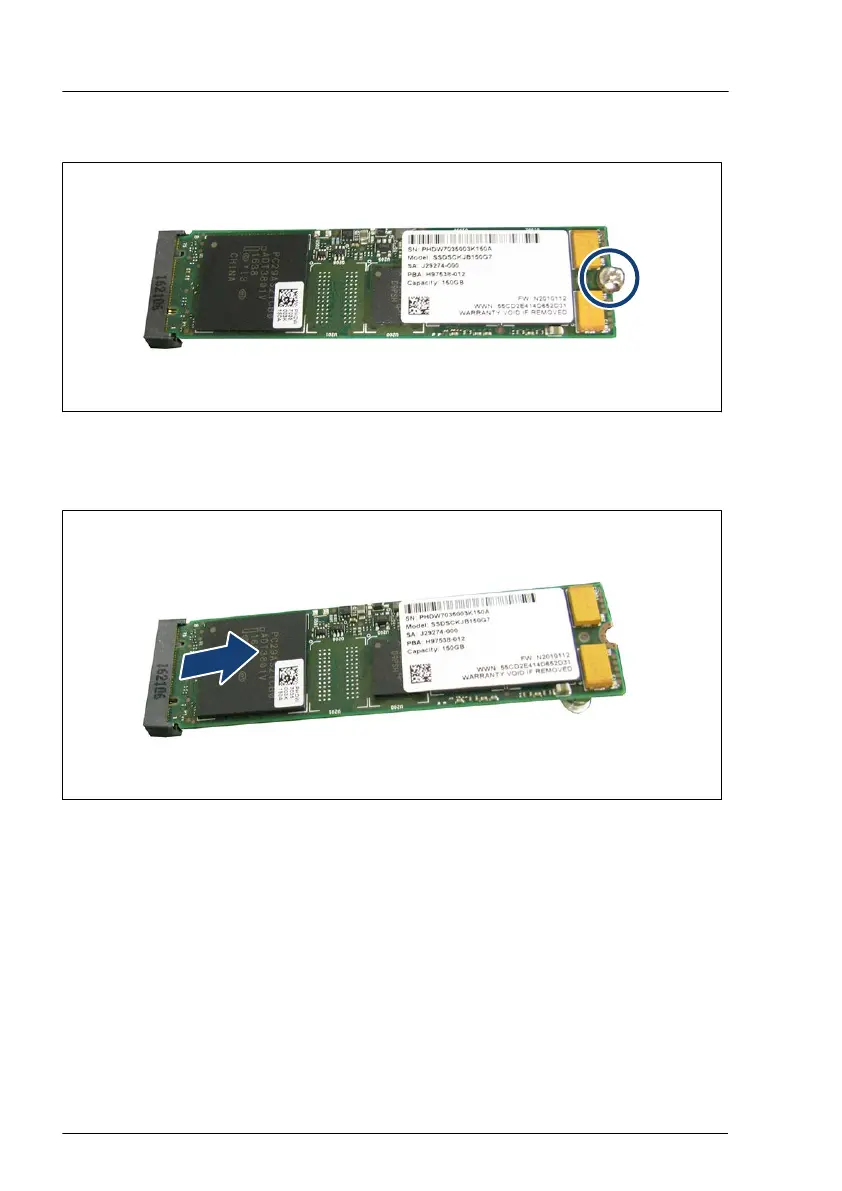

Figure 190: Removing the M.2 SSD (A)
â–¶
Remove the screw (see circle).
Figure 191: Removing the M.2 SSD (B)
â–¶
Pull the M.2 SSD out of its slot.
If no new M.2 SSD will be installed:
â–¶
Fasten the screw to the corresponding hexagon stand-of
f.
System board and components
340
Upgrade and Maintenance Manual
RX4770 M5
339
341
