Tools: Phillips PH2 / (+) No. 2 screw driver (for housing cover)
Preliminary steps
▶
"Shutting down the server" on page
45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
Remove the riser module 3/4, see "Removing the riser module 3/4 and 6/7"
on page 61.
Removing the Dual microSD 64GB Enterprise

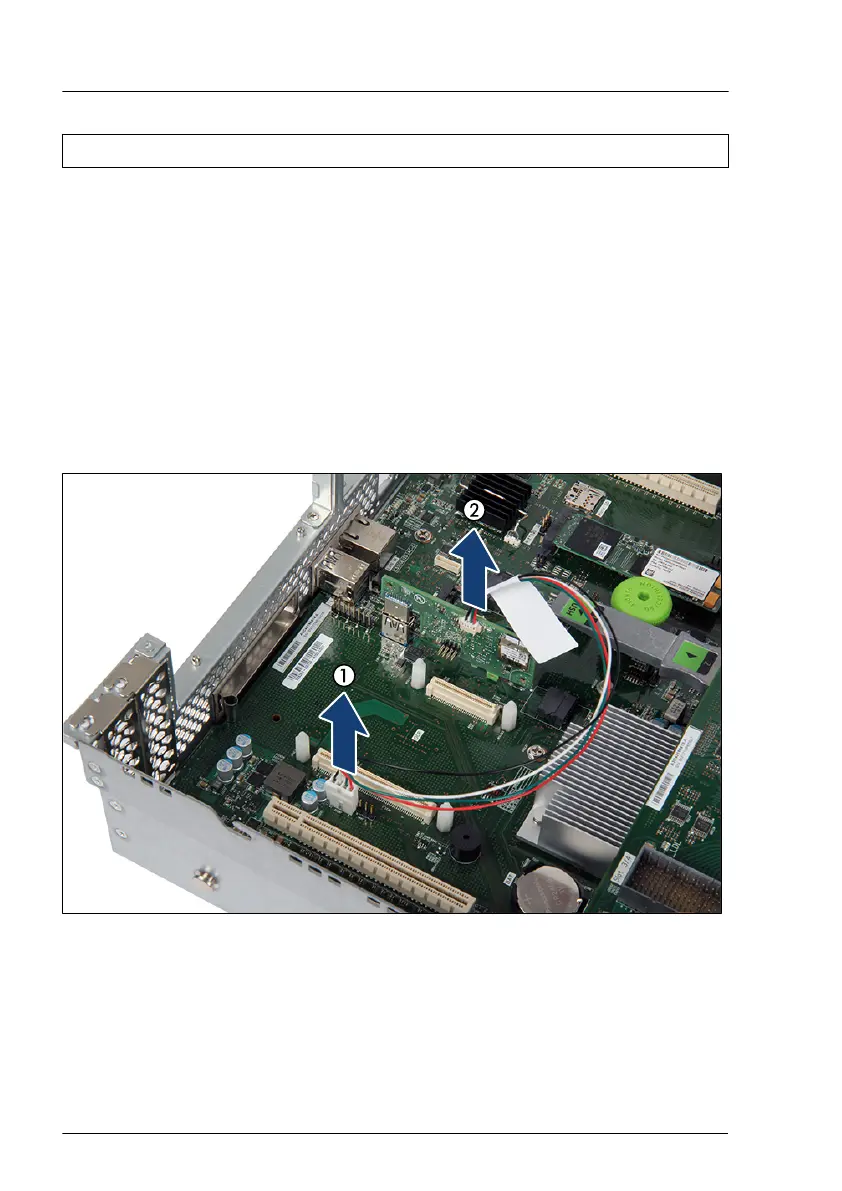

Figure 195: Removing the Dual microSD 64GB Enterprise
▶
Disconnect the cable from the connector "ROC" on the bottom system board
(1, see also "Internal connectors of the bottom system board" on page
406).
▶
Pull the Dual microSD 64GB Enterprise out of its connector (2).
System board and components
348 Upgrade and Maintenance Manual RX4770 M5
