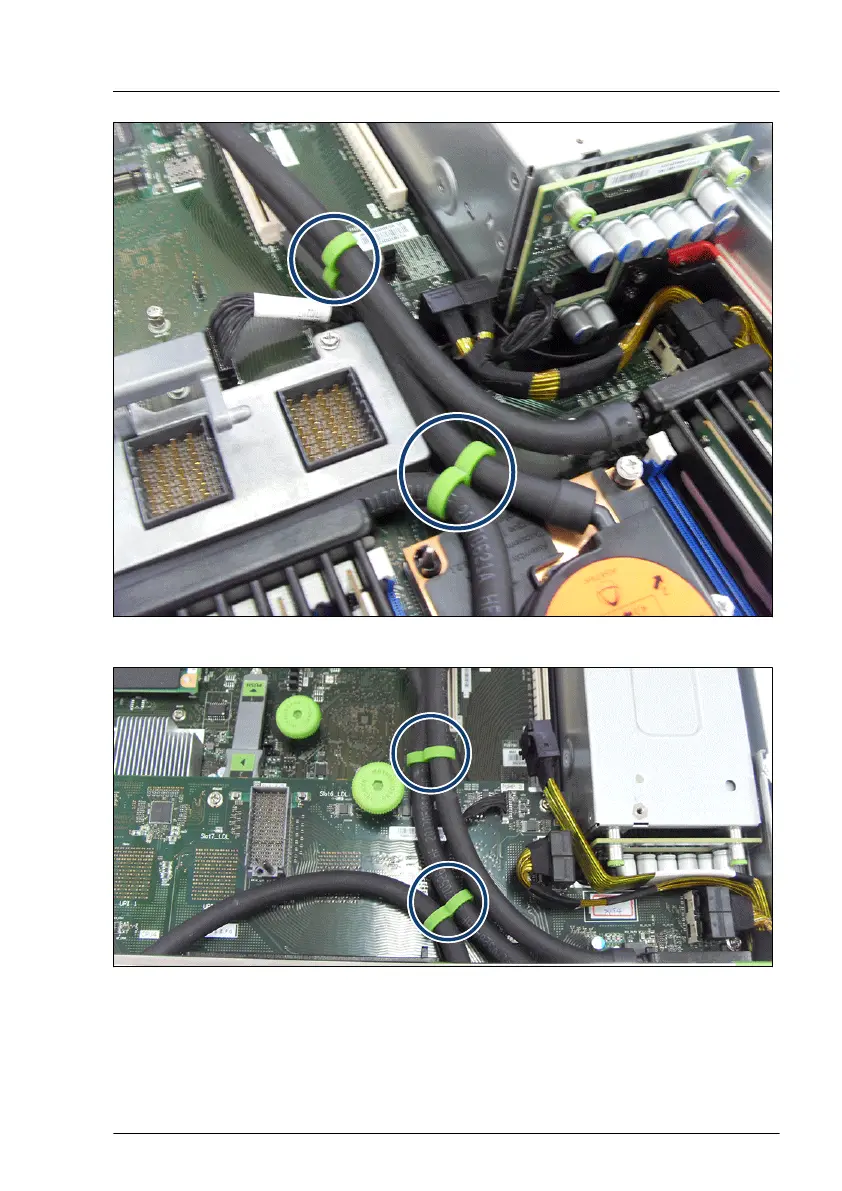

Figure 214: Flexible tubes with green clips for bottom system board

Figure 215: Flexible tubes with green clips for top system board

▶

Use the green clips to fix the flexible tubes (see circles).

Liquid cooling (LC)

RX4770 M5 Upgrade and Maintenance Manual 379
