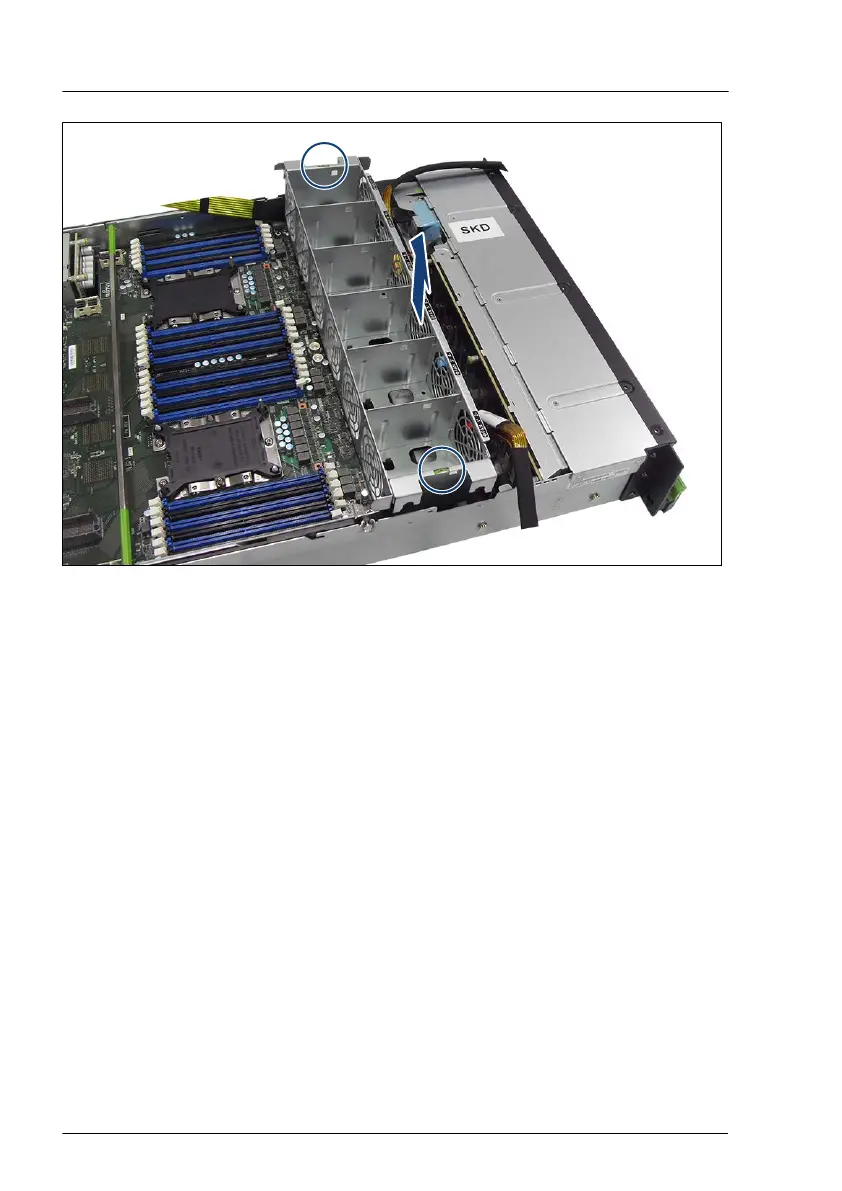

Figure 23: Removing the fan cage
▶
First, remove all fan modules from the fan cage, see Figure 22.
▶
Hold the fan cage at the two touch points (see circles) and pull out the fan
cage upward.
