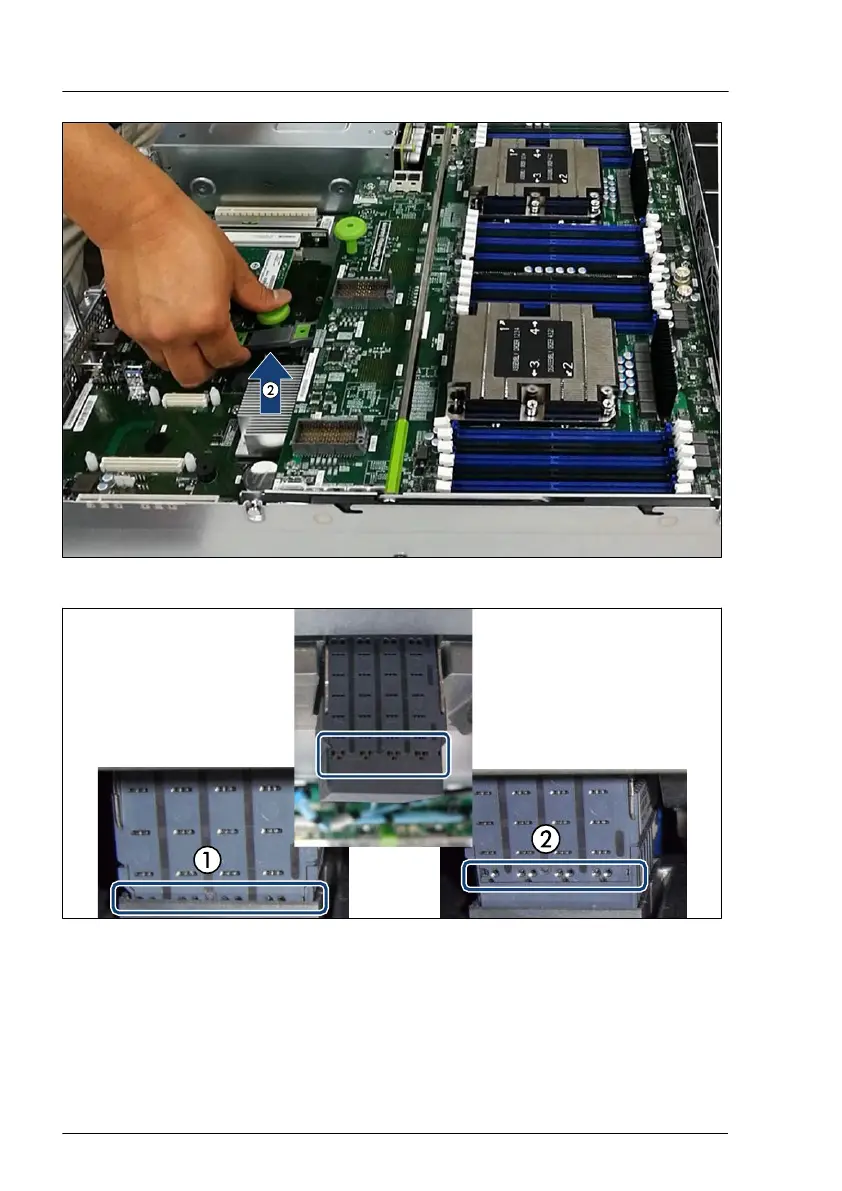

Figure 37: Securing the top system board (C)
Figure 38: Connector on the rear of the top system board
1 Completely engagement: The big holes
are not visible.
2 Not completely engagement: The big
holes are visible.
Basic hardware procedures
84 Upgrade and Maintenance Manual RX4770 M5
