Caution
For interfaces that operate in Routing mode, you only assign a VLAN ID to the inter-
face. You define this via the parameter Interface Mode = VLAN and the VLAN ID field
in the LAN -> IP Configuration ->Interfaces->New menu.
10.2.1 VLANs
In this menu, you can display all the VLANs already configured, edit your settings and cre-
ate new VLANs.
By default, the Management VLAN is available, to which all interfaces are assigned.
10.2.1.1 Edit/New
Choose the icon to edit existing entries. Choose the New button to configure other
VLANs.

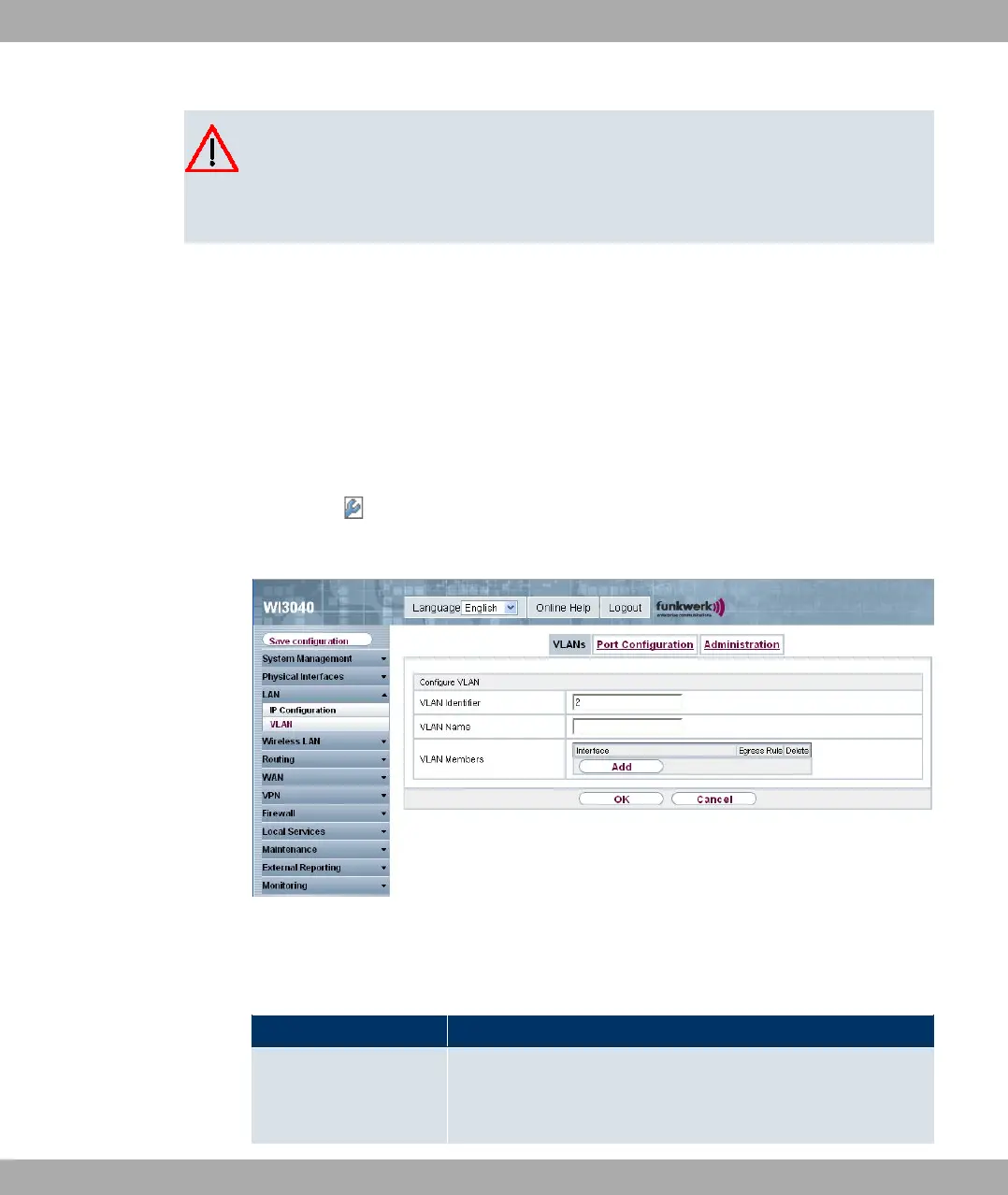

Fig. 59: LAN ->VLAN ->VLANs->Edit/New
The LAN->VLAN->VLANs->Edit/New menu consists of the following fields:
Fields in the VLANs Configure VLAN menu
Field Description
VLAN Identifier Enter the number that identifies the VLAN. In the Edit menu,
you can no longer change this value. Possible values are 1 to
4094.
