Field Description
VLAN Name Enter a unique name for the VLAN.
A character string of up to 32 characters is possible.
VLAN Members Select the ports that are to belong to this VLAN. You can use
the Add button to add members.
Under Egress Rule for each entry, select whether the frames to
be transmitted from this port are to be transmitted Tagged (i.e.
with VLAN information) or Untagged (i.e. without VLAN inform-
ation).
10.2.2 Port Configuration
In this menu, you can define and view the rules for receiving frames at the VLAN ports.

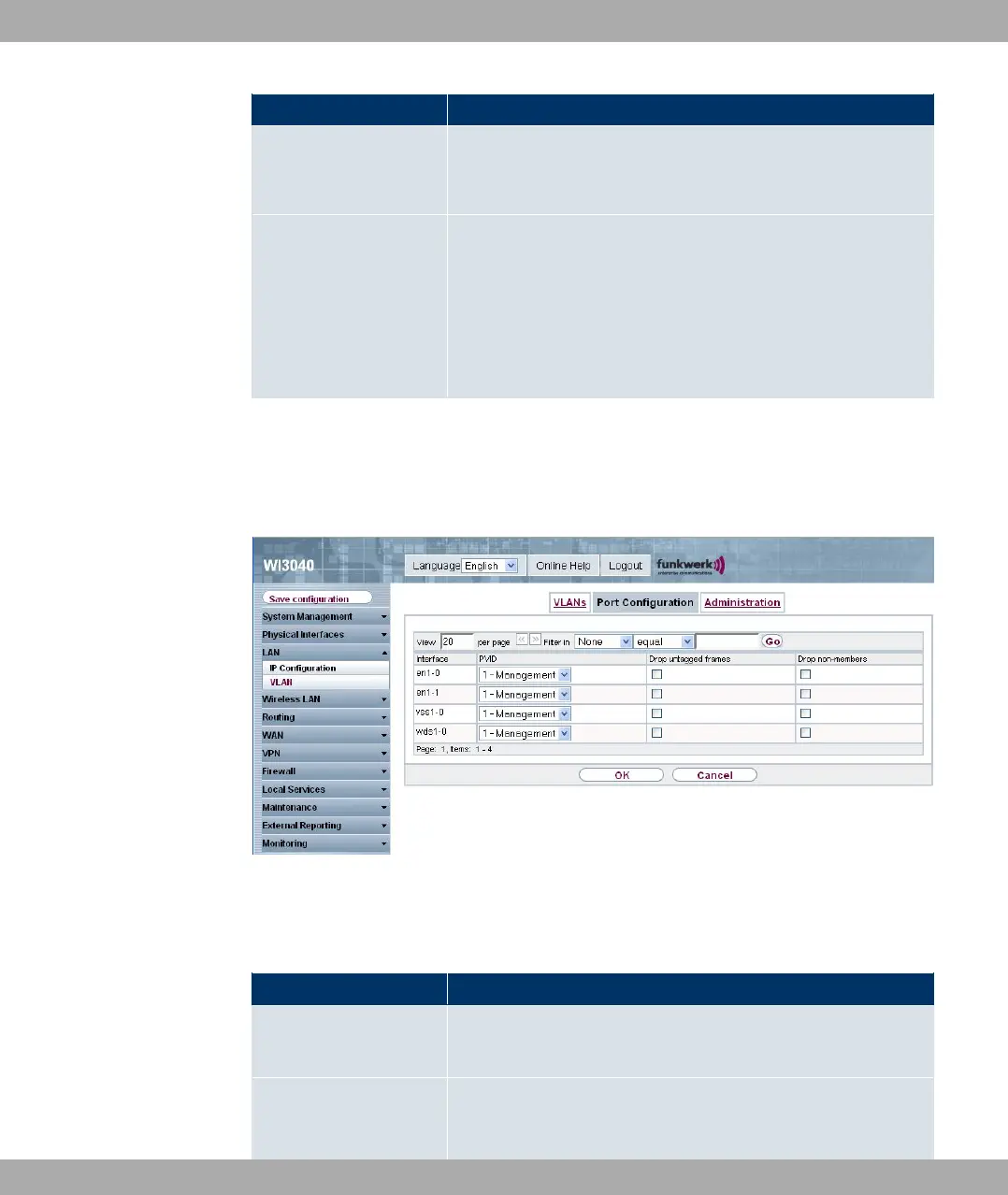

Fig. 60: LAN -> VLAN -> Port Configuration
The LAN->VLAN->Port Configuration menu consists of the following fields:
Fields in menu Port Configuration
Field Description
Interface The port for which you define the PVID and processing rules is
displayed here.
PVID Assign the selected port the required PVID (Port VLAN Identifi-
er).
10 LAN Funkwerk Enterprise Communications GmbH
132 bintec W1002/W1002n/W2002/WIx040/WIx065
