6.2.3 LEDs
By means of the eight LEDs, you can see the wireless status, wireless activity, Ethernet
activity and LED states of your device. The LED states are indicated by combinations of the
LEDs which are explained in detail in this chapter.
They are arranged as follows:

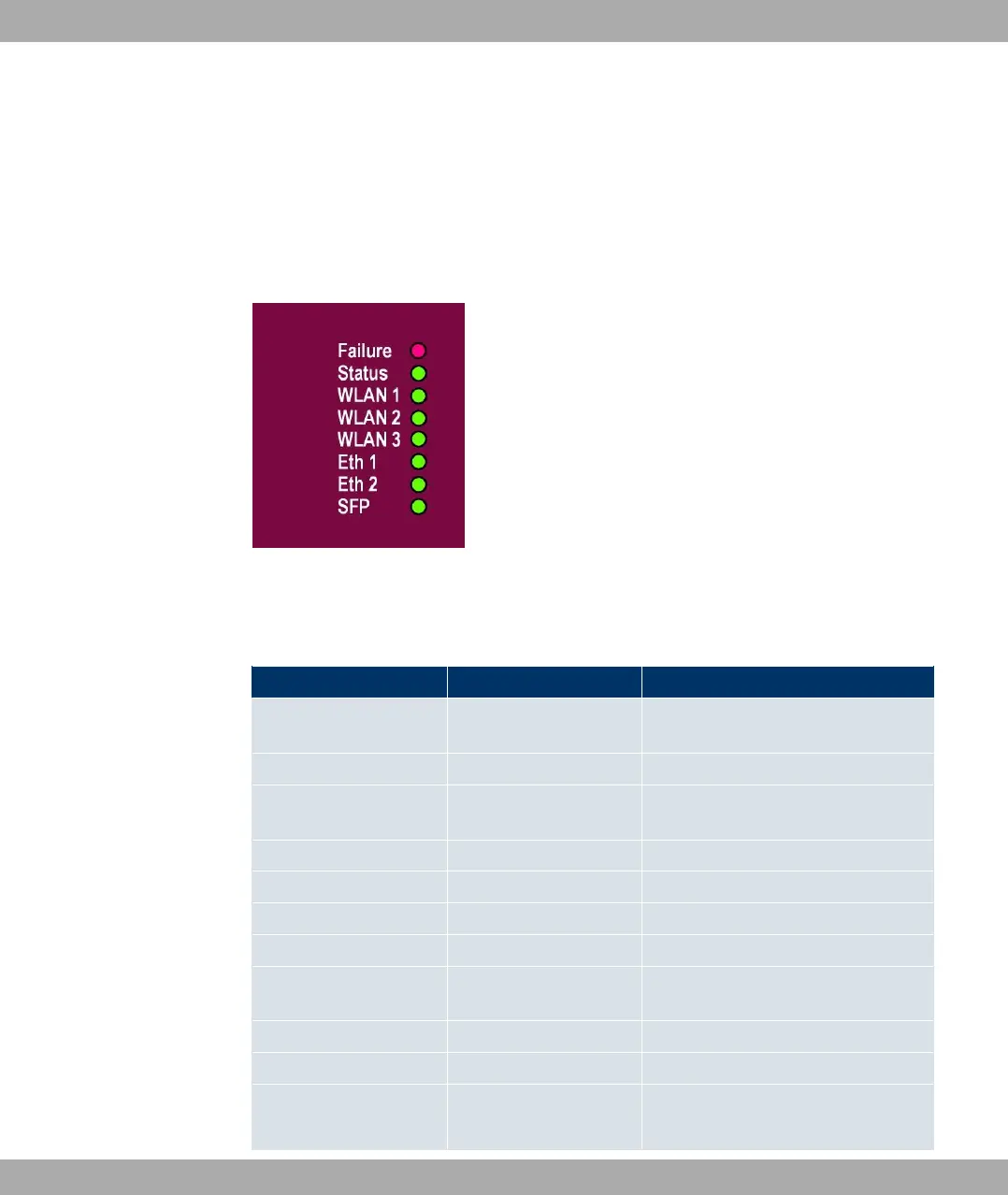

Fig. 19: LEDs of bintec WI1040, WI2040 and WI3040
In operation mode, the LEDs display the following status information for your device:
LED status display
LED State Information
Failure (red) on After power-up and during booting or
if an error occurs.
off If the device is at the login prompt.
Status (green) off The power supply is not connected. If
other LEDs are on, also Error.
on (static) Error
on (flashing) Ready
WLAN 1/2/3 (3x green) on (flashing slowly) Free
on (static) At least one client is registered
on (flickering) At least one client is registered and
there is data traffic
on (flashing fast) BLD (Broken Link Detection) active
on (flashing fast) 5 GHz scan active
ETH 1/2
off No cable or no Ethernet link
