Funkwerk W1002 User Manual

LED State Information
on (flickering) At least one client is registered and
there is data traffic
on (flashing fast) BLD (Broken Link Detection) active
on (flashing fast) 5 GHz scan active
ETH 1/2 off No cable or no Ethernet link
on Cable plugged in and link
on (flickering) Cable plugged in and link with data
traffic
During the boot operation, all LEDs are on (1x red/green status and 4x green). This means
the monitor has been started and firmware is being loaded.
6.1.4 Connections
All the connections are located on the underside of the device. On bintec W1002n the third
antenna connection is located on the underside of the device. On bintec W2002 the third
and fourth antenna connections are located on the underside of the device. bintec W1002
and bintec W2002 have two Ethernet connections and one serial interface.
The connections are arranged as follows:

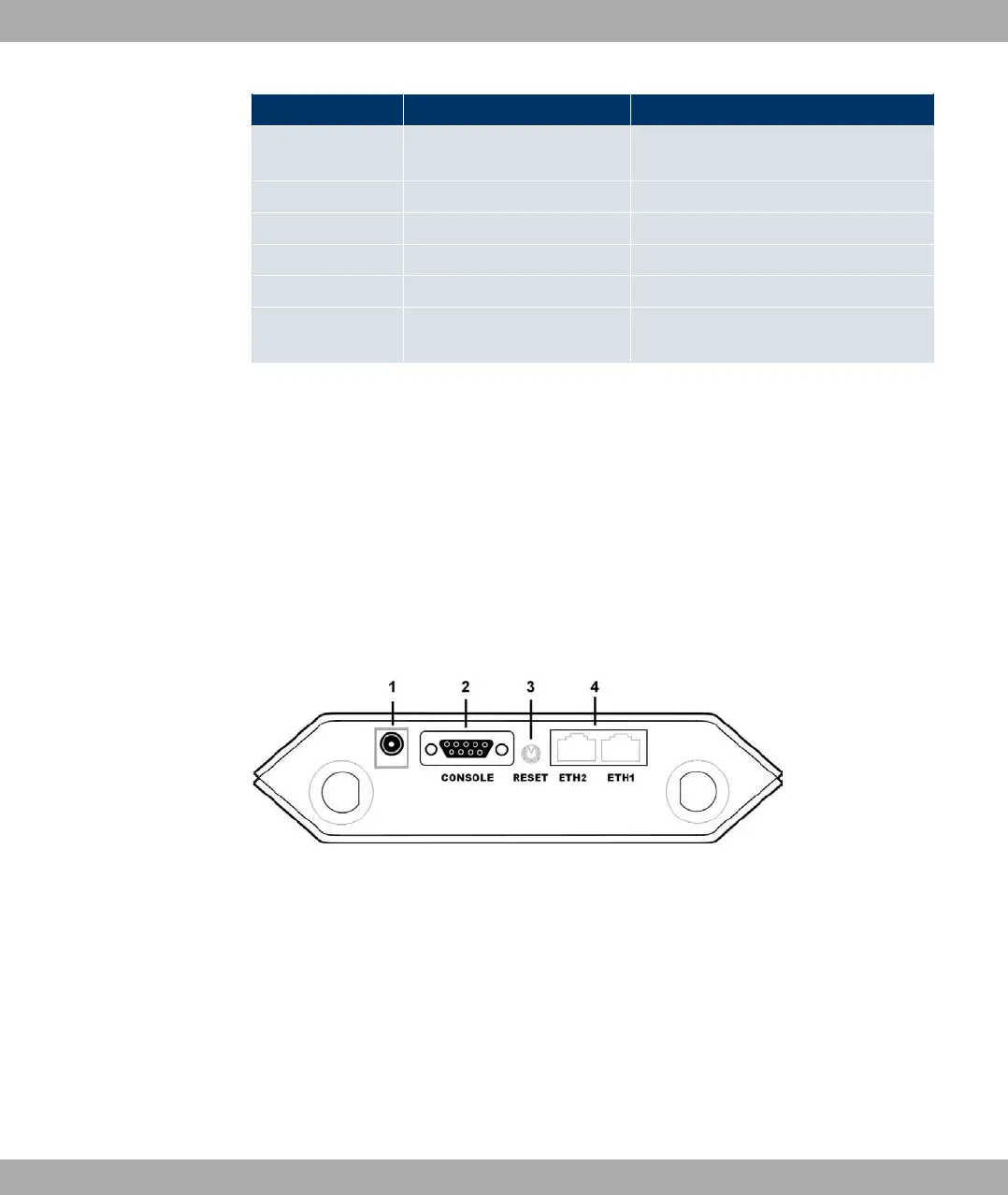

Fig. 13: bintec W1002 underside
6 Technical data Funkwerk Enterprise Communications GmbH
32 bintec W1002/W1002n/W2002/WIx040/WIx065
