6.2.2 General Product Features
To ensure safe operation, the WI series devices have a connection to earth. The minimum
cross-section of the earth lead should be 1.5 mm². The distance between the device and
the connection to earth should be as short as possible. For the bintec WIx065 devices, the
connection to earth is under the cover.

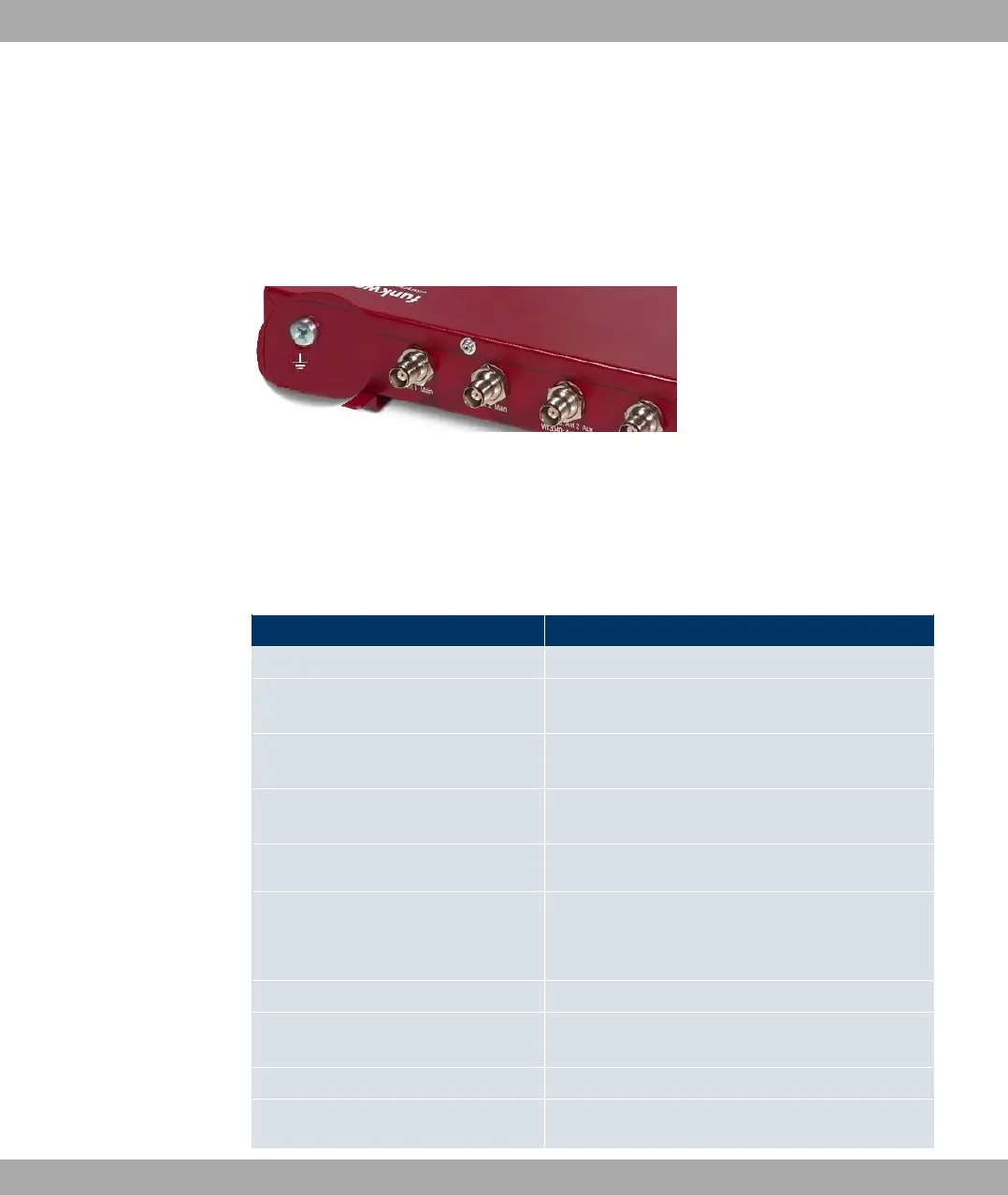

Fig. 18: Connection to earth bintec Wx040
The general product features cover performance features and the technical prerequisites
for installation and operation of your device.
The features are summarised in the following table:
General Product Features
Property Value
Variants:
bintec WI1040 One internal wireless module, 2 external antennas
(1x Main, 1x AUX)
bintec WI2040 Two internal wireless modules, 4 external anten-
nas (2x Main, 2x AUX)
bintec WI3040 Three internal wireless modules, 4 external anten-
nas (3x Main, 1x AUX)
Dimensions and weights:
Equipment dimensions without cable
(W x L x H)
220 mm x 185 mm x 42 mm without feet
Weight approx. 1200 g (3 WLAN modules)
LEDs 8 (1x Failure, 1x Status, 3x WLAN, 2x Ethernet, 1x
SFP)
Power consumption of the device 5-15 Watt, depending on extensions
Voltage supply Earth conductor/connection to earth M4. All
Funkwerk Enterprise Communications GmbH
6 Technical data
bintec W1002/W1002n/W2002/WIx040/WIx065 37
