54
T - 1/
T -
This key selection provides markers that are
horizontally located to permit relative readings
along the scope vertical axis. The display
adjacent to the "Mrk:" field shows the relative
horizontal deflection between the two marker
positions in units of time.
This softkey selection provides markers that are
also vertically located to permit relative readings
along the scope horizontal axis. This selection
however inverts the time reading to display the
relative difference in terms of frequency.

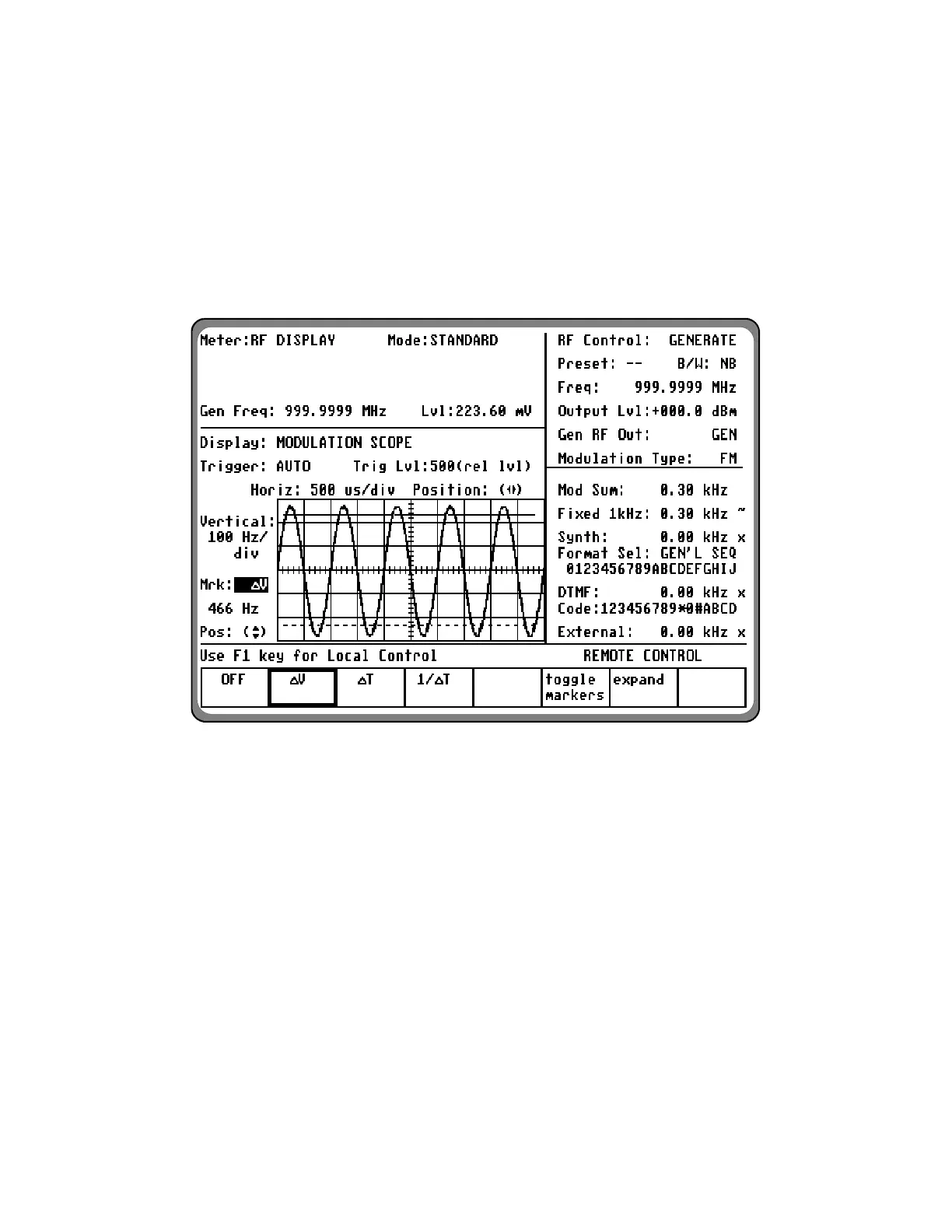

Figure 3-21. Modulation Scope Markers (Option)
