Horizon Vertical Sensitivity
Press the desired softkey to select the Horizon-
tal Sweep rate (20 s to 1 sec/div). Since all
ranges cannot be shown on one screen, press
the more softkey for additional selections.
Press the desired softkey to select the Vertical
Sensitivity (10 mV to 10 V per division).
When all ranges cannot be shown on one
screen, press the more softkey for additional
selections.
NOTE
If horizontal sweep rates of greater than
10 msec/div are selected, the update rate will
slow down. A good overall setting for most
applications is 200
sec per division.
Vertical Position
Adjust the vertical position through the
cursor field either by using the desired softkey
(MOVE UP, MOVE DOWN) or by using the
rotary TUNING knob.
Horizontal Position
Press the expand softkey from any field in the
scope display window to enlarge the display
for more detailed analysis. Use the return
softkey to get back to the normal size display.
Adjust the horizontal position through the ( )
cursor field either by using the desired softkey
(MOVE LEFT, MOVE RIGHT) or by using
the rotary TUNING knob.

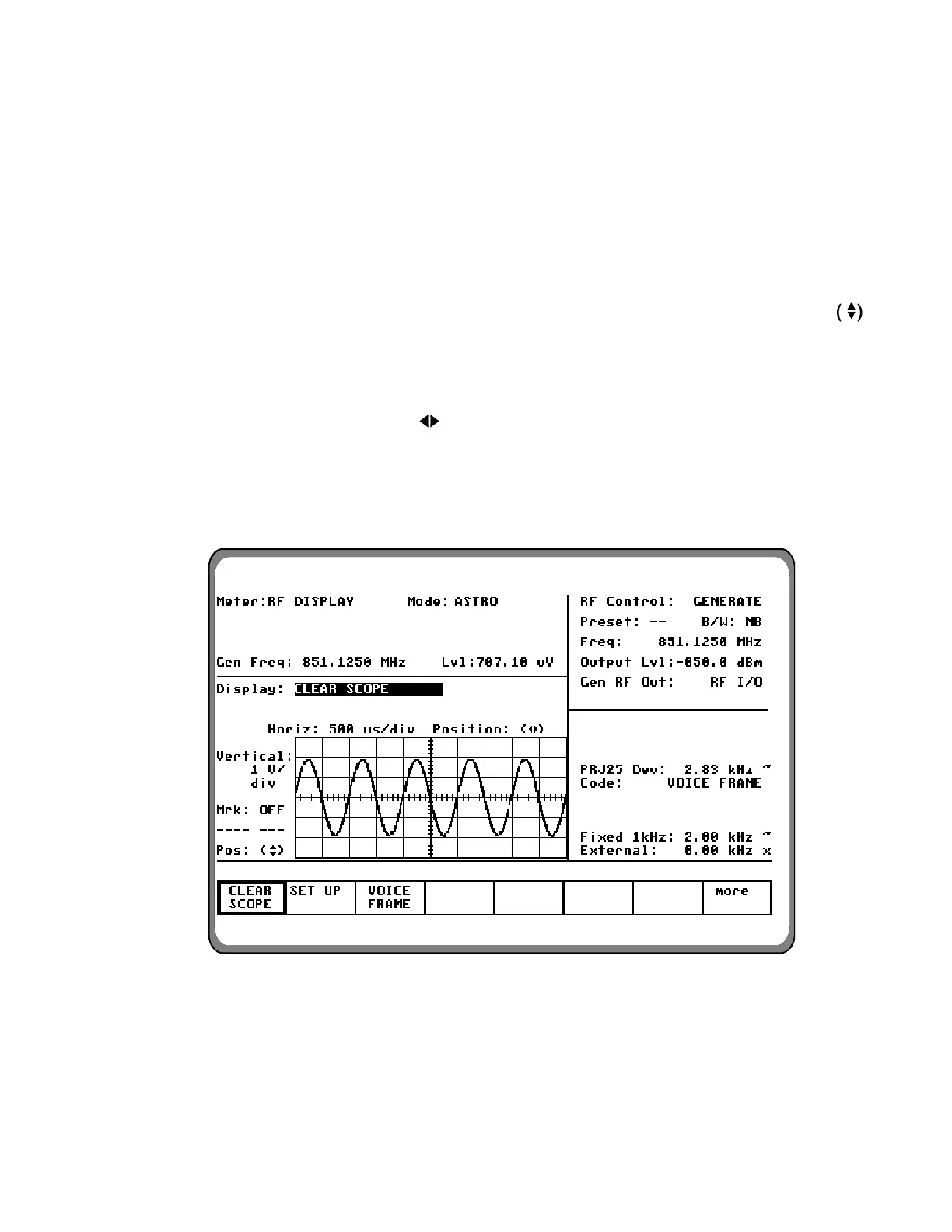

Figure 17-18. ASTRO CLEAR SCOPE Display
237
