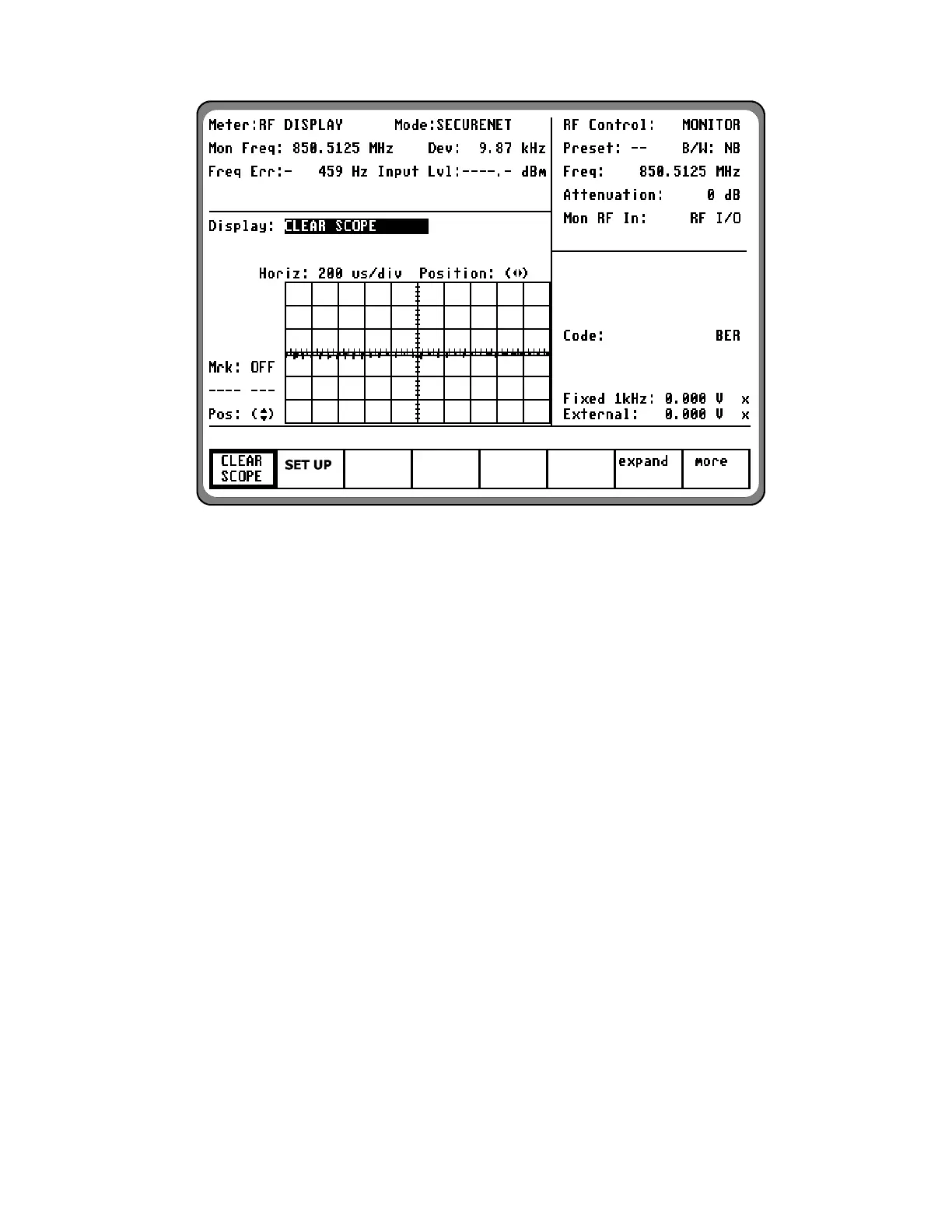

Figure 13-16. SECURENET CLEAR SCOPE Display
V
This softkey selection provides markers that
are horizontally located to permit relative
readings along the scope vertical axis. The
display adjacent to the "Mrk:" field shows the
relative voltage difference between the two
marker positions.
T
This key selection provides markers that are
horizontally located to permit relative readings
along the scope vertical axis. The display
adjacent to the "Mrk:" field shows the relative
horizontal deflection between the two marker
positions in units of time.
1/
T
This softkey selection provides markers that
are also vertically located to permit relative
readings along the scope horizontal axis. This
selection inverts the time reading to display the
relative difference in terms of frequency.
13-10.2.2. Generate Mode
In Generate m
ode, the CLEAR SCOPE display
shows the generated analog audio signal. The
CLEAR SCOPE operational controls are similar
to the Standard version MOD SCOPE, however
the vertical scale is different as previously listed
for Monitor mode.
13-10.2.3 Duplex Mode
In Duplex m
ode, the softkeys provide selection of
either the recovered analog audio signal or the
generated analog audio signal. Otherwise, the
CLEAR SCOPE display is the same as in
paragraph 13-10.2.1.
In DUPLEX mode, select either generate or
monitor CLEAR SCOPE display by first moving
the cursor to the "Select:" field within the
Display area, and then pressing the desired soft-
key
GEN or MON.
