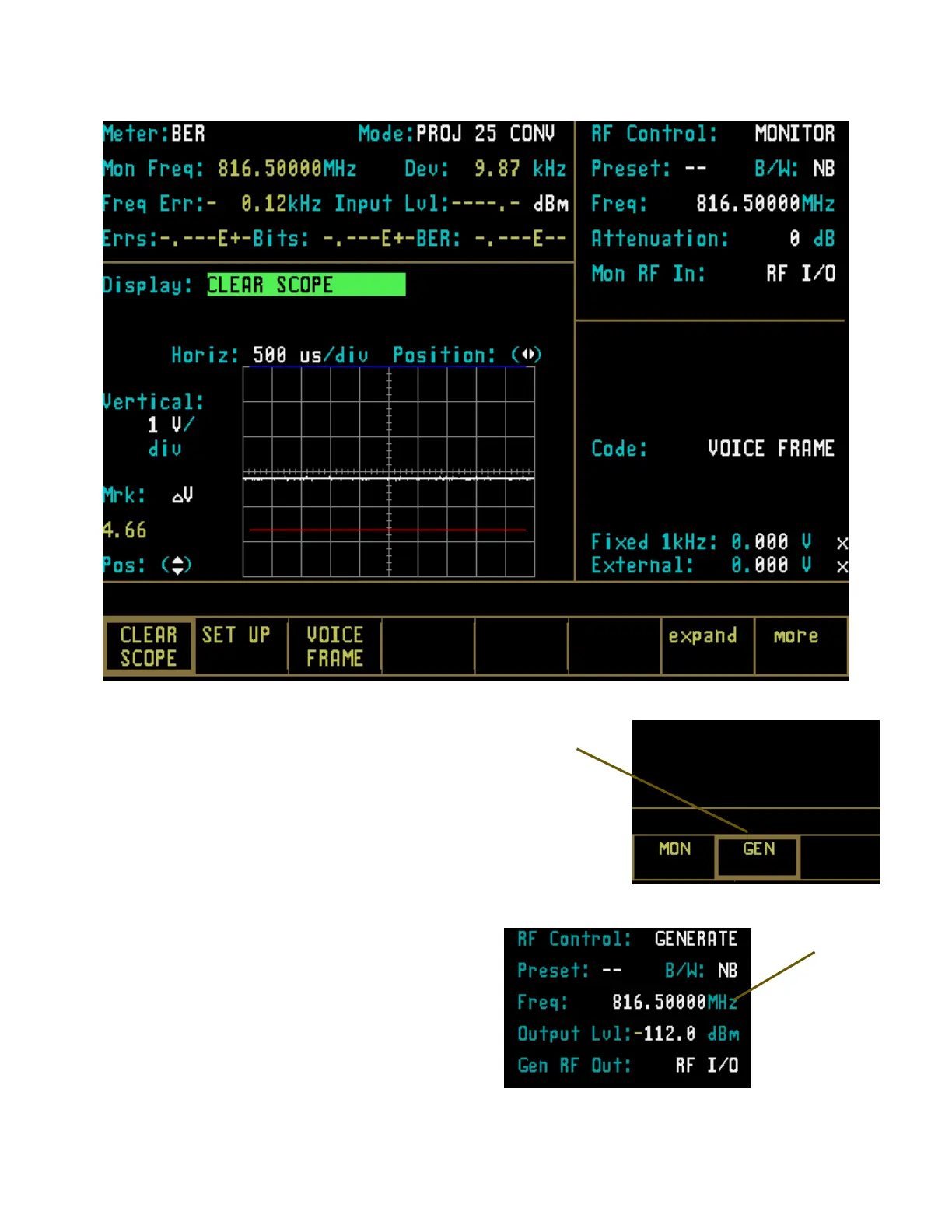

Figure 22-3. PROJ 25 CONV CLEAR SCOPE Display of Recovered Audio
22-7 MONITORING TRANSMITTED
AUDIO WITH CLEAR SCOPE
This section of the manual contains information
on using the Clear Scope function to analyze the
R2670’s raw modulation signal (1 kHz) in PROJ
25 CONV Generate mode. This analog signal is
viewed prior to being digitized and encrypted.
NOTE
It is not necessary to connect the analyzer’s
DVM port for this application.
1. Place the cursor within the RF Zone in “RF
Control:” field. Press the GEN softkey to
place the analyzer into its Generate mode of
operation
.
Generate
Mode
Softkey
2. Within the RF Zone, set as follows:
Receiver
Frequency
287
