13-7 SECURENET ENCRYPTION SET UP
13-7.1 SET UP Encrypter Display
The SET UP display places the analyzer in
encryption setup mode and allows the operator to
select the desired algorithm. SET UP display is
accessed from the Display Zone. To use SET UP
display, move the cursor to the "Display:" field
and select SET UP using the SET UP softkey. The
Display Zone will show a menu of SET UP
options as shown in figure 13-6.
13-7.1.1 Algorithm Select
Within the SET UP display, the first option field
is Algorithm Select. Algorithm is a term that
describes the method of coding data or audio so
that only equipment having the same algorithm
selected, and the same key, is able to exchange
intelligible information. The analyzer includes
several algorithms recognized by radios using
SECURENET. You will need to select one of
these algorithms to use for processing messages.
In the Display Zone, move the cursor to the
"Algorithm Sel:" field as shown in figure 13-7.
The softkeys will provide a menu of the available
algorithms. Select the algorithm that corresponds
to the radio being tested. Menu choices depend
on which SECURENET option was purchased.
Refer to paragraph 13-4 for a description of the
U.S. and International encryption algorithms.

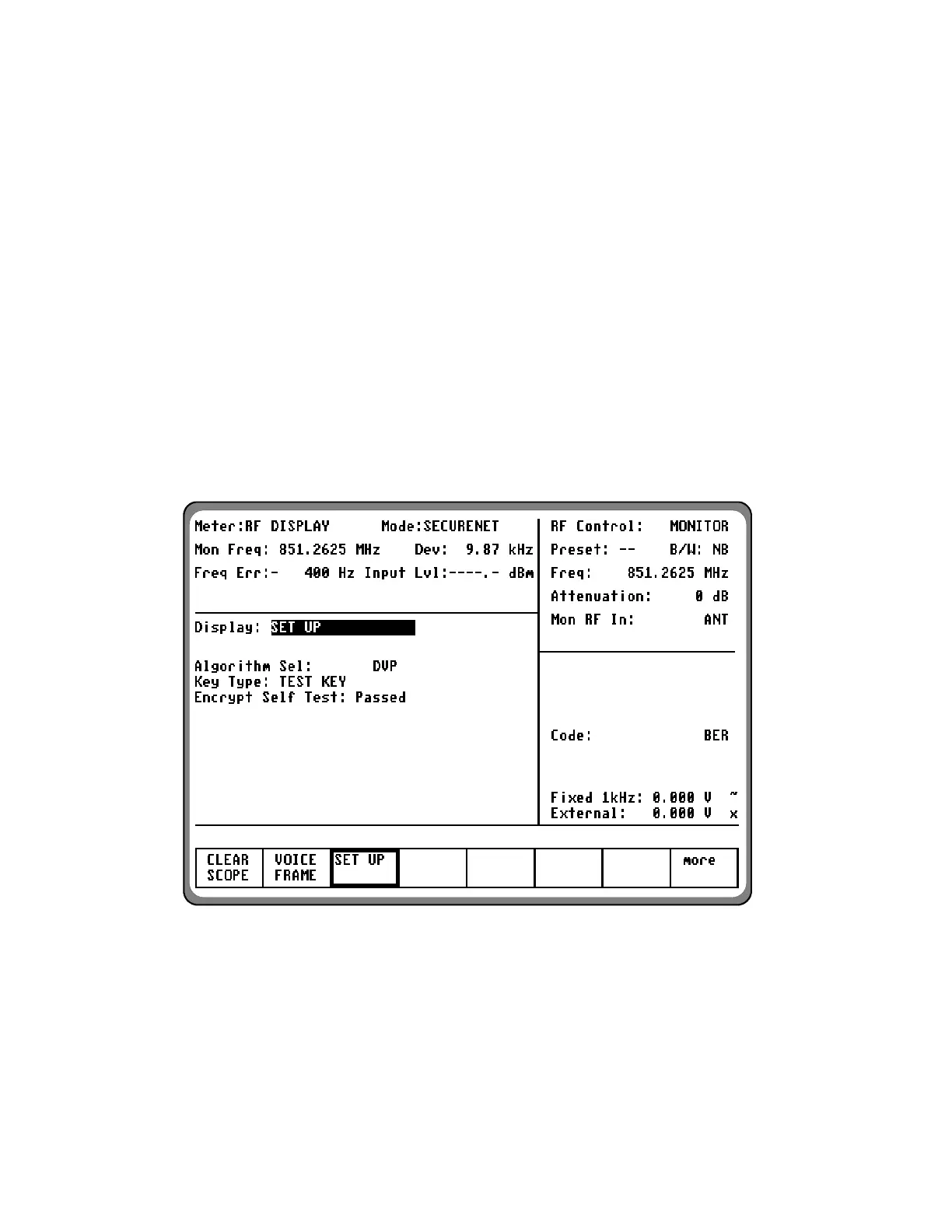

Figure 13-6. SET UP Display Screen
170
