17-2 SOFTWARE VERSION SCREEN
To view the software version of the R2670
Analyzer, turn power on and wait for the display
to appear on the screen. Press the SPF hard key,
and move the cursor to "VERSION." Select the
display table softkey. This will configure the
analyzer to generate a screen that displays the
ASTRO software version (figure 17-1).
Move the cursor to the ASTRO position and
select the view options softkey. A screen similar
to figure 17-2 will be displayed and indicates the
analyzer options installed and encryption
algorithms available.
Select return softkey twice to return to the
ASTRO mode screen.

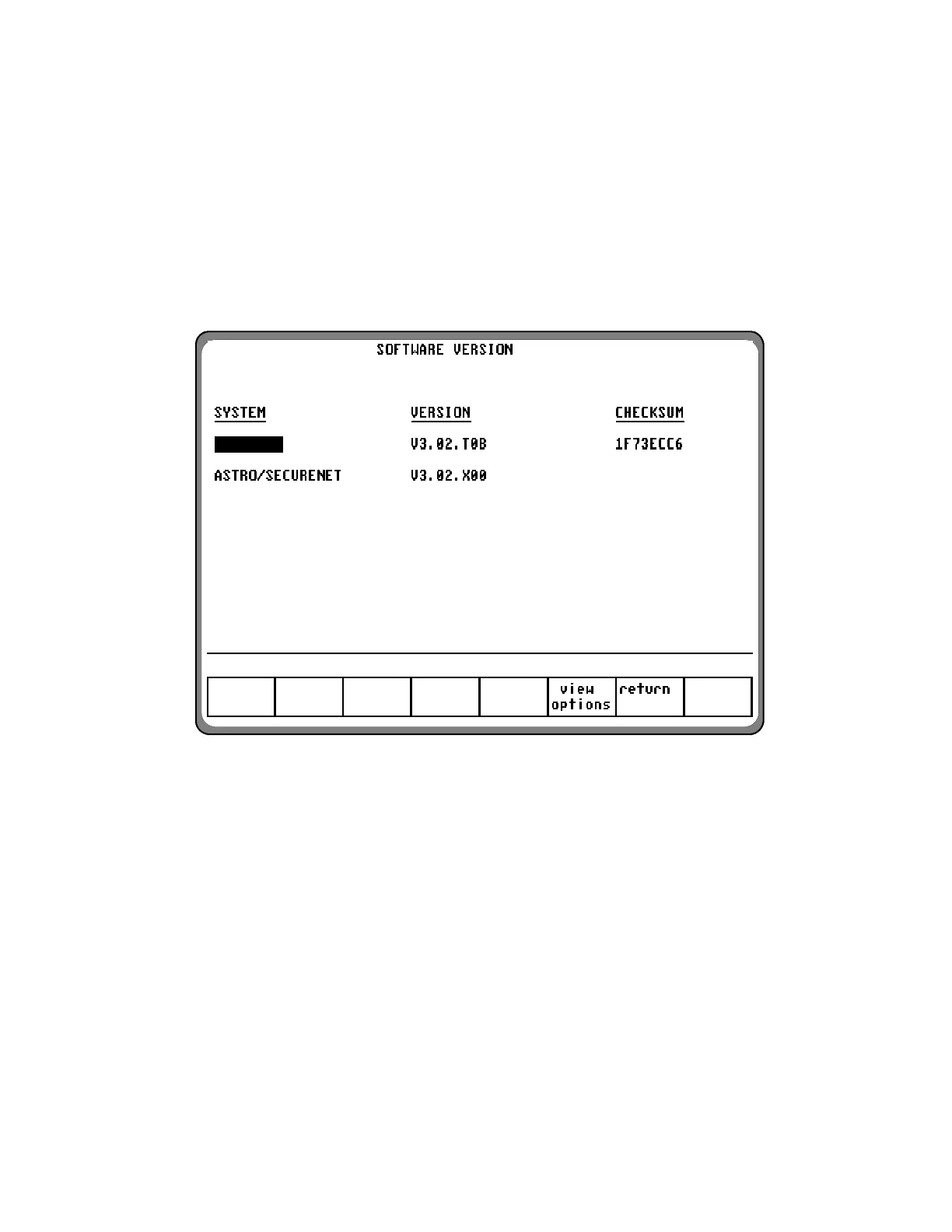

Figure 17-1. ASTRO Version Screen
214
