selection of the receive port, either ANT or
RF I/O.
24-4.4.3 Audio Zone
The audio zone allo
ws the user to enter
parameters relating to the transmitted signal
modulation. A description of the audio zone
fields follows:
Gen
Allows the user to
select the RF power level
of the analyzer’s transmit signal. The
allowed ranges very depending on the output
port selected:
PRJ25 Dev
Defines the deviation level of the analyzer’s
transm
itted C4FM signal. This ranges in
value of 0.00 kHz to 5.00 kHz.
GEN
port+000.0 to –080.0 dBm
RF I/O -050.0 to –130 dBm
Code
The output port is also selectable as either
GEN or RF I/O.
This def
ines the test pattern to be transmitted.
The only option available is 1011 Hz PAT
(the 1011 Hz test pattern).

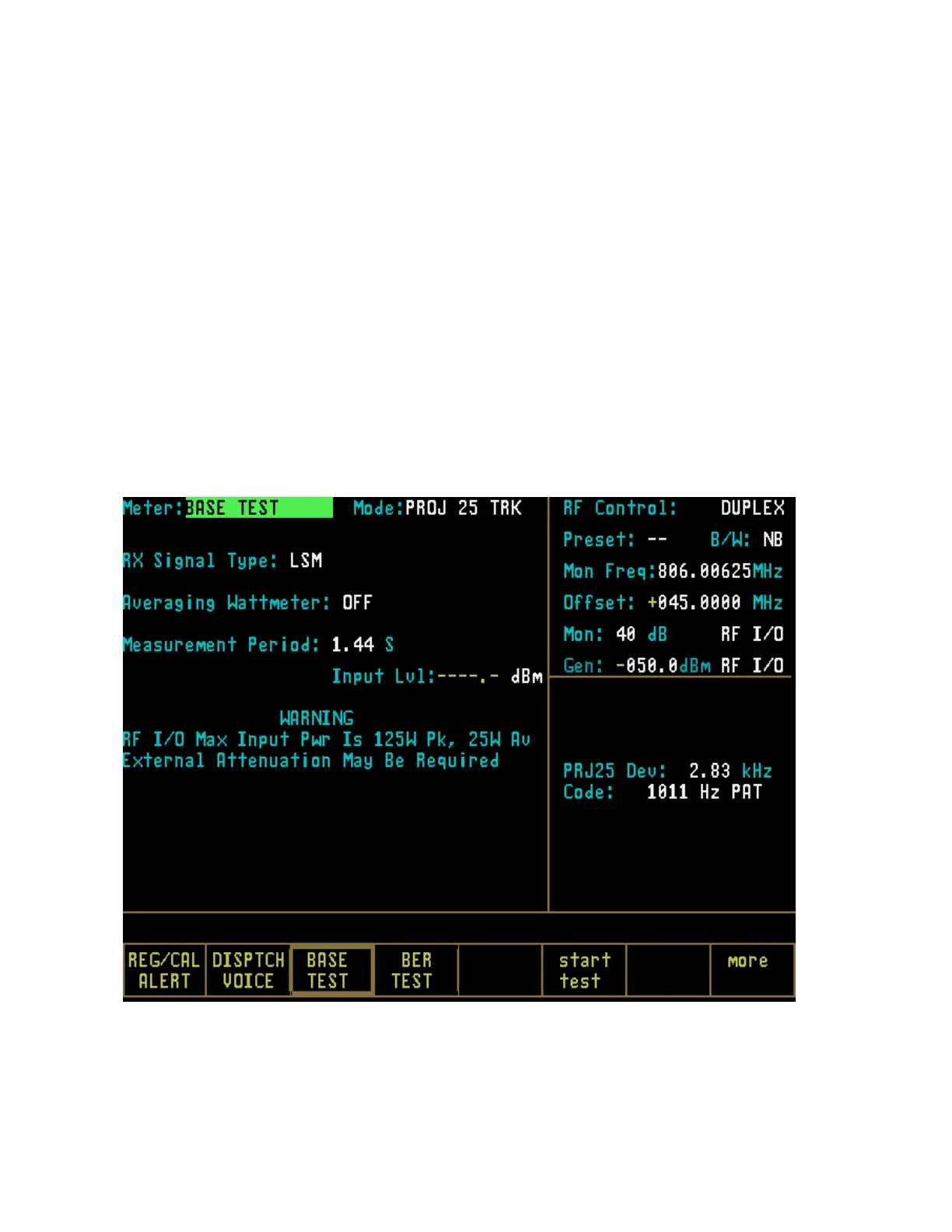

Figure 24-6. PROJ 25 Trunk BASE Test Meter Selection
302
