17-6 ACCESSING ASTRO MODE
Select the ASTRO mode by placing the cursor in
the "Mode:" field in the Display Zone located at
the top of the screen. Use the ASTRO softkey to
select the ASTRO mode. A screen similar to
figure 17-5 appears.
When the display zone "Mode:" is set to ASTRO,
the R2670 will configure itself to generate and
monitor ASTRO signals.

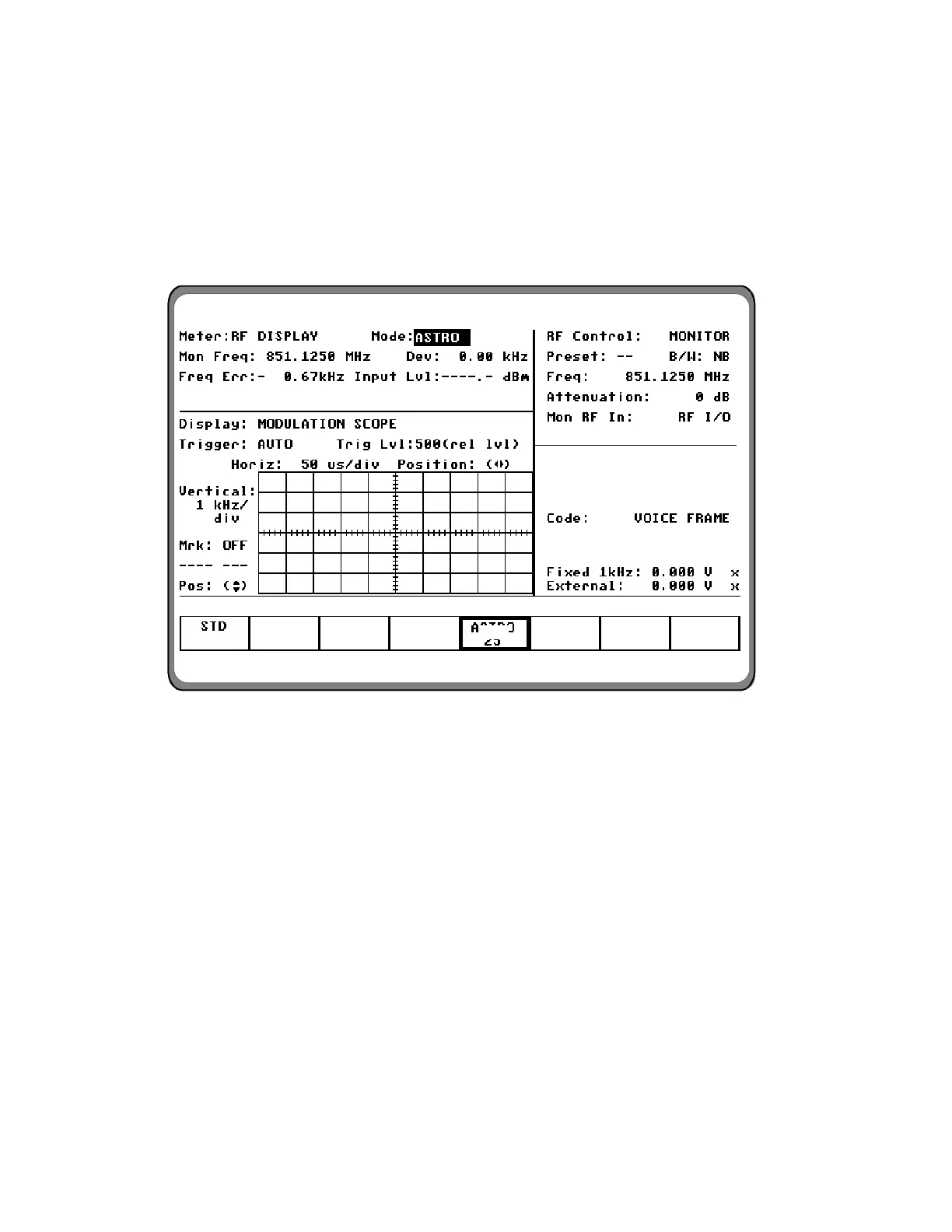

Figure 17-5. ASTRO Mode Screen
219
