major signaling events based on the metering
selection, the signaling type, and the call sequence.
Refer to Appendix F for a description of the status
thermometer signaling events for each test
sequence.
To set up testing, select the Trunk mode by placing
the cursor in the "Mode:" field in the Display Zone,
and selecting the TRUNK softkey. Within the
Display zone, place the cursor in the "Meter:" field
and press the softkey RADIO INIT to view current
data and test status for a radio initiated trunked test
sequence. Within the Display zone, place the cursor
in the "Sig Type:" field and press the softkey
TRUNK I to select Trunk I signaling. A screen
similar to figure 6-4 appears.

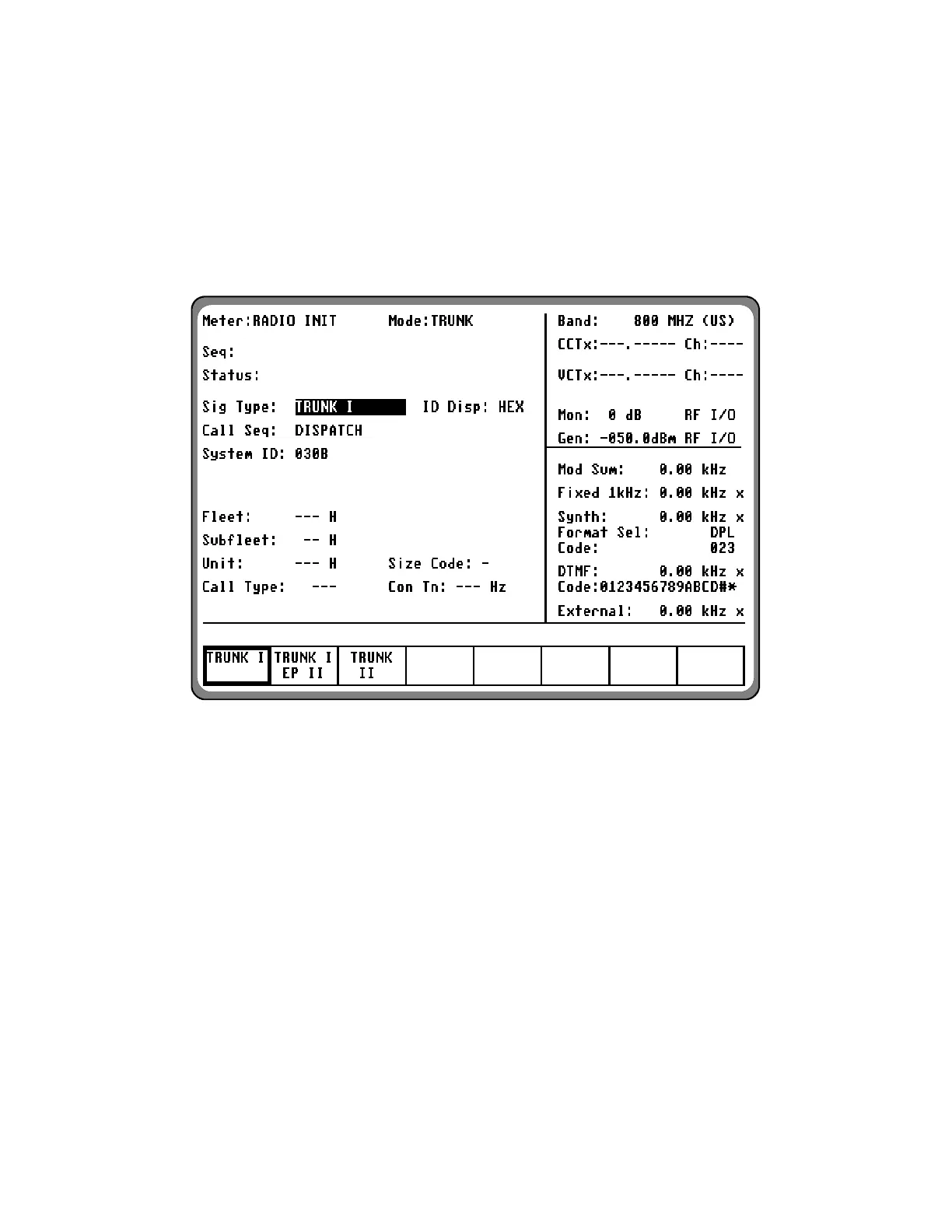

Figure 6-4. Dispatch Test Screen – Radio Initiated Trunk I Signaling
With the above screen displayed, use the cursor
control keys to position the cursor, and the softkeys
to select the following parameters.
ID Disp:
ID Display is entered with the softkeys. ID
Display selects the format of the ISW data that is
decoded. The format of the decoded ISW data is
either hexadecimal or decimal format.
For Radio Initiated Trunk I and Trunk I EP II test
sequences with ID DISP set for DEC, the six
digit unit ID decoded from the ISW is the
personality ID of the radio and NOT the unit ID.
When ID DISP is set for HEX, the unit ID is
displayed in hexadecimal format. The Fleet and
Subfleet IDs are always displayed in hexadecimal
independent of the ID DISP selection.
For System Initiated Trunk I and Trunk I EP II
test sequences with ID DISP set for DEC, the six
digit unit ID field is used to enter the decimal
version of the unit ID only.
Call Seq:
Call Sequence configures the trunking analyzer
with the test sequence to be executed. dispatch,
Phone Interconnect, Call Alert, and Failsoft call
sequences are supported.
92
