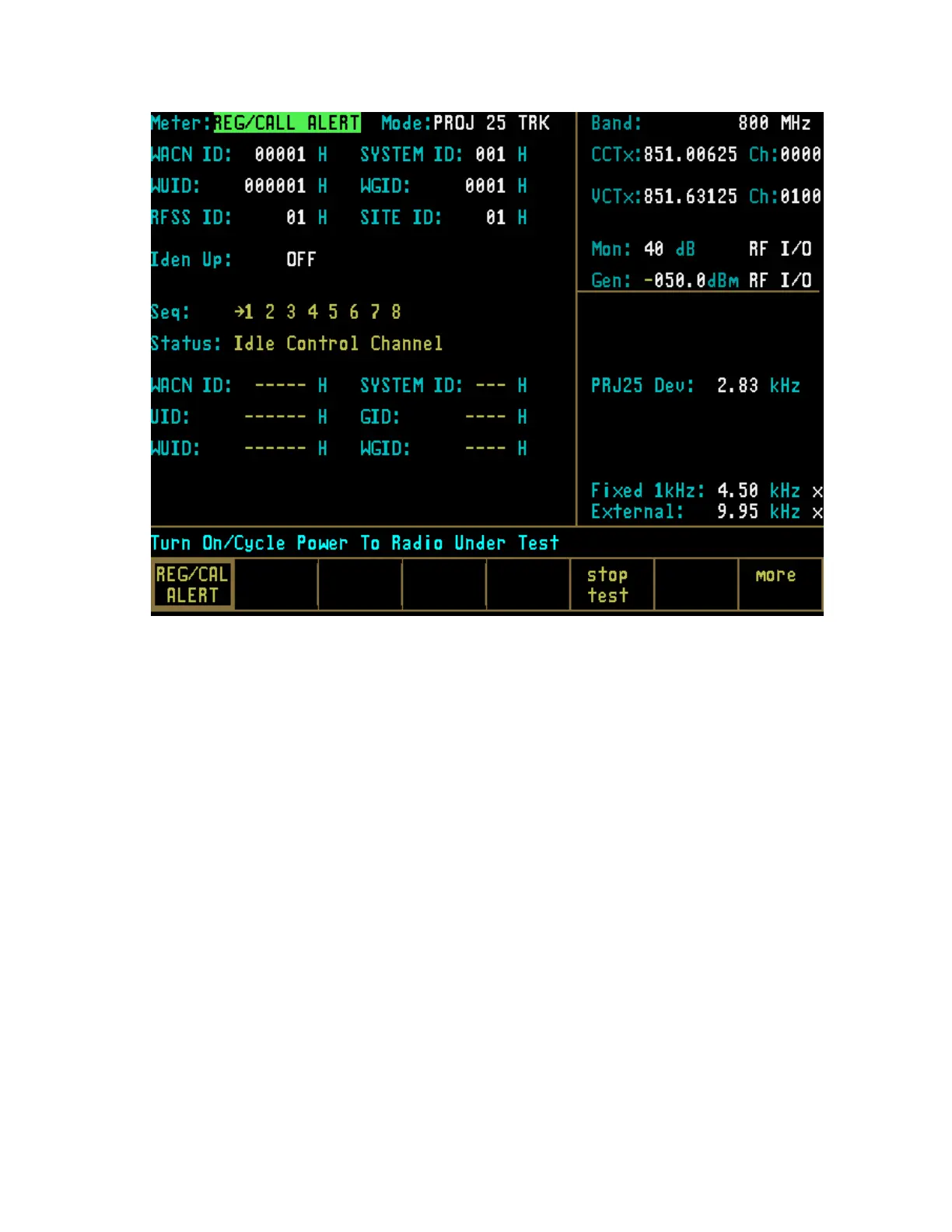

Figure 24-5 Registration Call Alert meter Selection
24-4.3 PROJ 25 Trunking Screens
Upon selection of REG/CAL ALERT,
DISPATCH VOICE, BASE, or BER the
screen zones defined in section 24-3 will
display parameters associated with Project
25 Trunking. Parameters associated with
REG/CAL ALERT and DISPTCH VOICE
are identical, therefore the screens look
identical until the start test softkey is
pressed.
Upon test initiation, the screens differ for
each test only in the call sequence diagram
and message prompts. The following
sections define the Project 25 parameters
associated with each Display Zone. The
BASE and BER screens each require their
own set of parameters. These selections also
will modify the parameters that are available
in the RF Zone and Audio Zone.
24-4.3.1 Display Zone
The Display Zone consists of two main
sections User Input Parameter Section and the
Result Section. The User Input Section
consists of various IDs that must be entered by
the user. These IDs match the IDs contained
within the radio so that a communication link
can be established between the analyzer and
the radio. The result section consists of
parameters received from the radio under test.
Some of the parameter definitions are identical
to those in the Input Parameter Section.
The User Input section of the display zone
consists of various parameters that must be
entered by the user. These parameters must
match the configuration set in radio codeplug.
The radio codeplug is read using Radio
Service Software (RSS). The parameters
definitions are as follows.
