GW Instek GPT-10000 Series User Manual

OPERATION
105

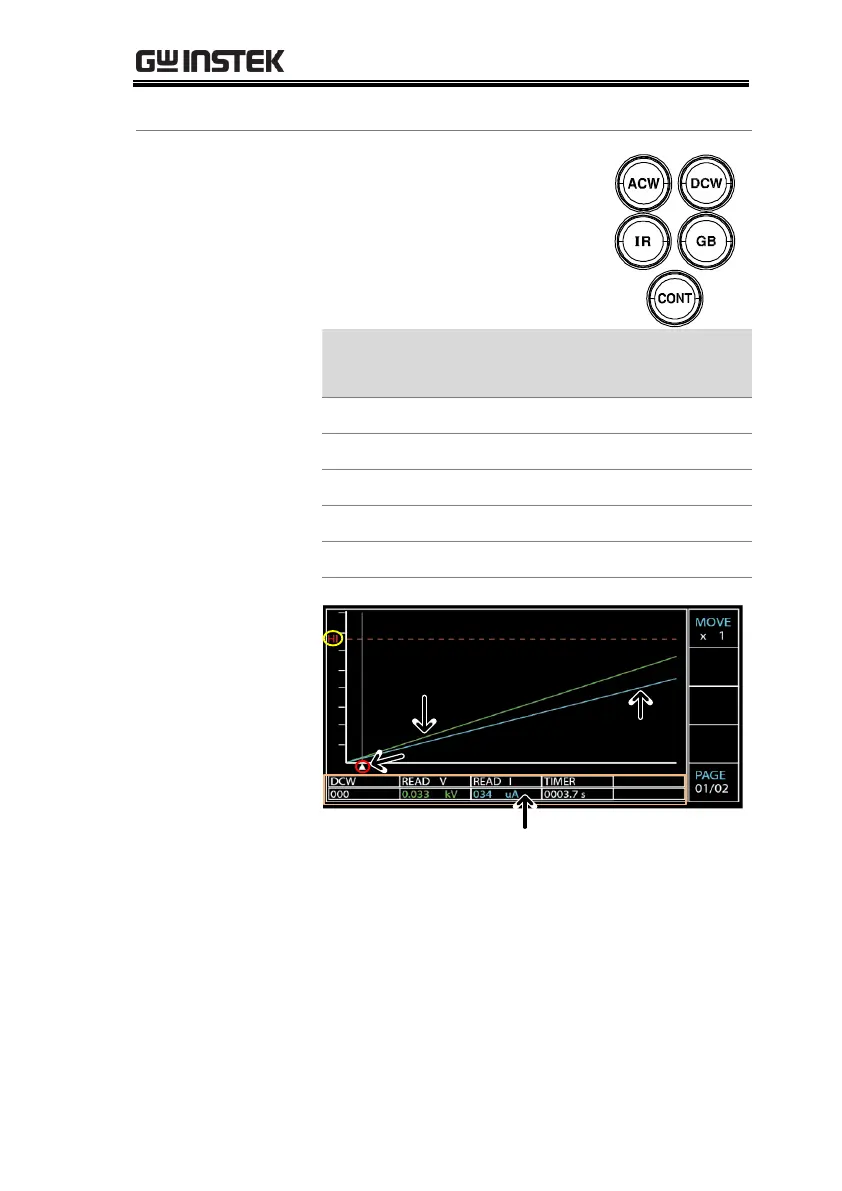

Steps of View
Sweep Graph
1. When a test has finished, press
the corresponding button, e.g.,
DCW button for DCW test, to
view the result of the sweep in
an intuitive graph.
Graph Test Items:
TEST
GREEN
BLUE
ACW
Measured voltage
Measured current
DCW
Measured voltage
Measured current
IR
Measured voltage
Measured resistance
GB
Measured current
Measured resistance
CONT
Measured current
Measured resistance
DCW Sweep
Graph Example
Cursor
Measured Current
(READ I in Blue)
Measured Voltage
(READ V in Green)
The values of point by cursor
