GW Instek GPT-10000 Series User Manual

OPERATION
51

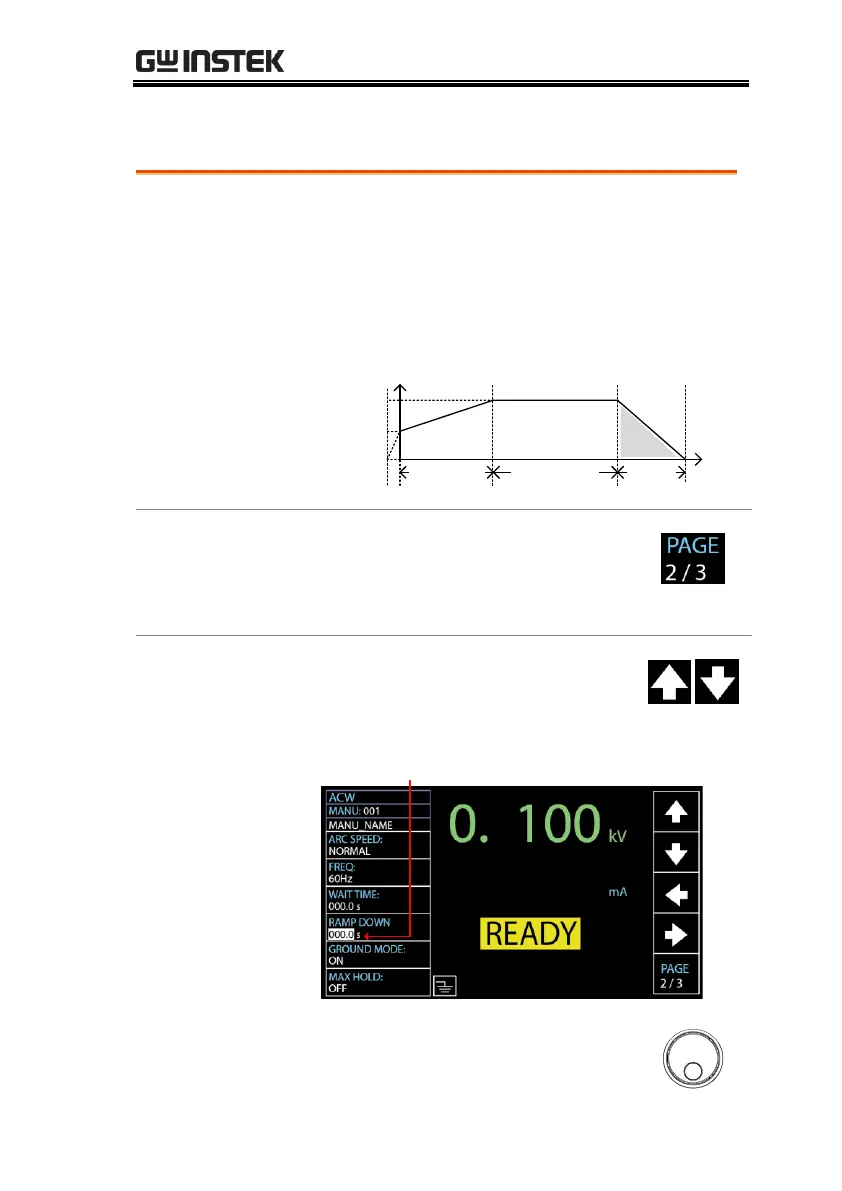

Setting the Ramp Down Time
Background
The Ramp Down time is the time taken for
tester to gradually lower down ouput test
voltage from the set highest level to zero volt.
The Ramp Down time can be set from 000.0 to
999.9 seconds. The Ramp DOWN time is only
applicable for ACW, DCW and IR tests.
Output Voltage
Timing Chart
(Resistive load)
Test V
time
TEST TIME
RAMP UP
RAMP
DOWN
Initial V
(Adjustable)
Steps
1. Press the PAGE soft-key to move to
the 2/3 page where RAMP DOWN
setting appears for ACW, DCW and
IR.
2. Press the UP / DOWN arrow soft-
keys to bring the cursor to the
RAMP DOWN setting.
RAMP DOWN cursor
3. Use the scroll wheel to set the
RAMP DOWN value.
