GW Instek GPT-10000 Series User Manual

GETTING STARTED
19

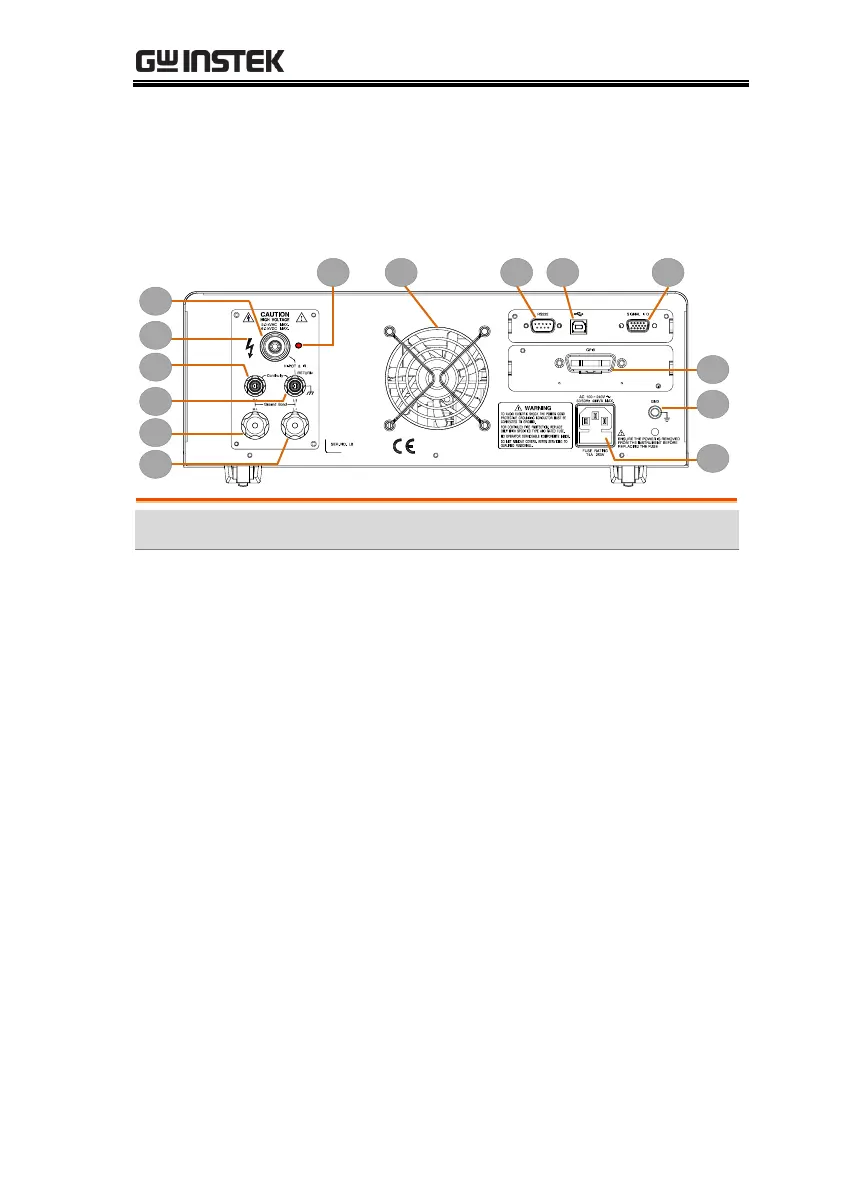

Rear Panel Overview
GPT-12001/12002/12003/12004/15001/15002/15003/15004/15012
1
3
7 8 9 A
B
C
D
2
4
5
6
E
Item
Description
1
HIGH VOLTAGE Output Terminal
2
HIGH VOLTAGE Indicator
3
SENSE H & Output Terminal
4
SENSE L & RETURN Terminal
5
SOURCE H (GPT-12004/GPT-15004 only)
6
SOURCE L (GPT-12004/GPT-15004 only)
7
Fan
8
RS-232 Port
9
USB B-Type Interface Port
A
Signal I/O Port
B
GPIB Port/Ethernet LAN Port (Optional)
C
GND
D
AC Mains Input (Power Cord Socket)
E
HIGH VOLTAGE pilot lamp
