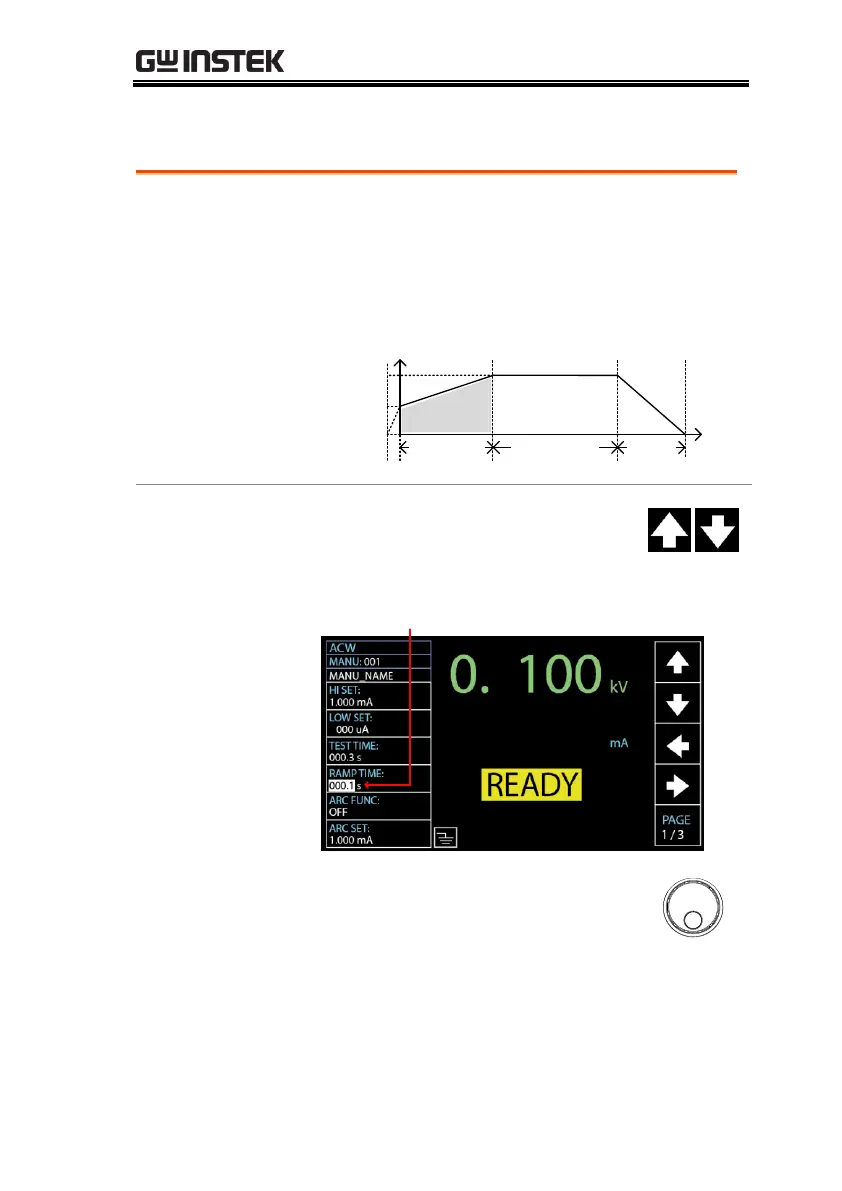

Setting the Ramp Up Time
Background
The Ramp Up time is the total time taken for
the tester to reach the test voltage level. The
Ramp Up time can be set from 000.1 to 999.9
seconds. The Ramp Up time is only applicable
for ACW, DCW and IR tests.
Output Voltage
Timing Chart
(Resistive load)
Test V
time
TEST TIME
RAMP UP
RAMP
DOWN
Initial V
(Adjustable)
Steps
1. Press the UP / DOWN arrow soft-
keys to bring the cursor to the
RAMP TIME setting.
RAMP TIME cursor
2. Use the scroll wheel to set the
RAMP TIME value.
ACW
DCW
IR
000.1s~999.9s
000.1s~999.9s
000.1s~999.9s
