GW Instek GPT-10000 Series User Manual

OPERATION
39

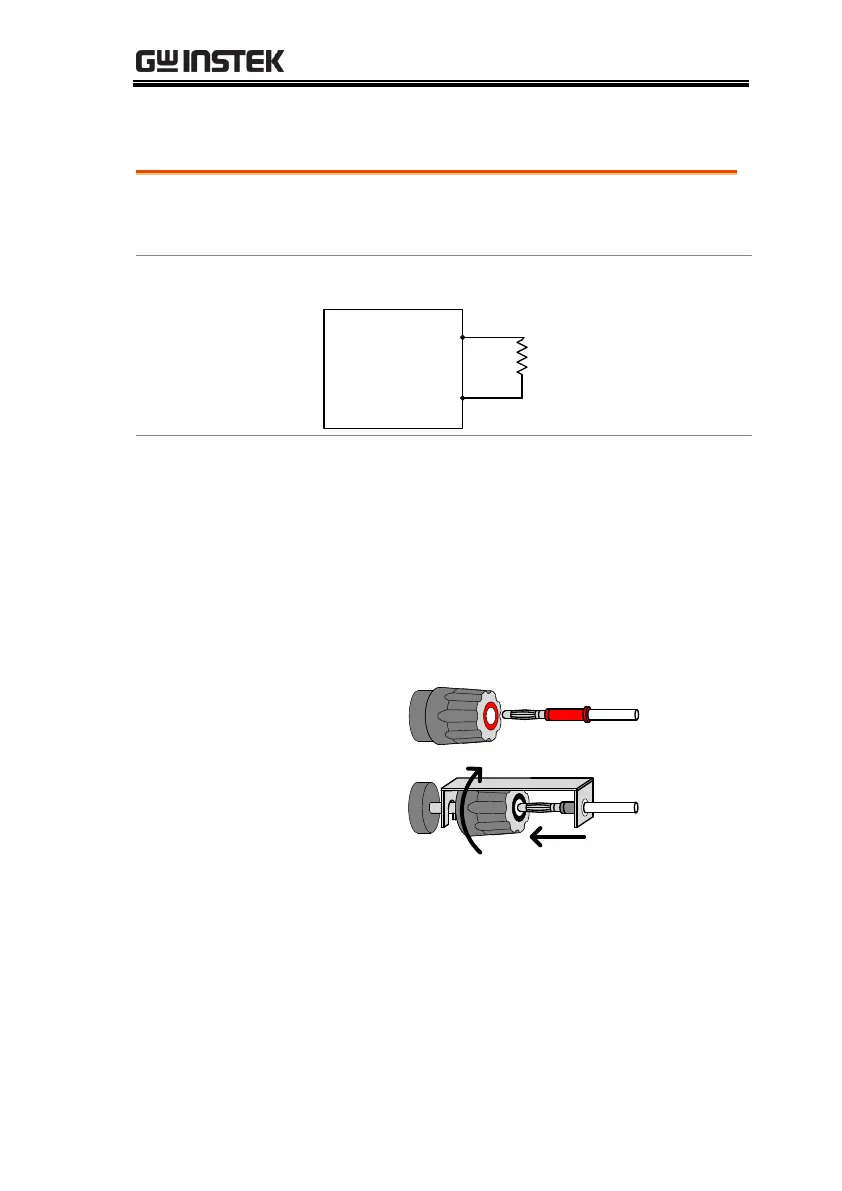

CONT Connection
Background
CONT tests use the OUTPUT and RETURN
terminals with the GTL-115 test leads.
CONT
Connection
DUT
GPT-10000
Return terminal
Output
Steps
1. Turn the power off on the safety analyzer.
2. Connect the OUTPUT test lead (white) to the
OUTPUT terminal.
3. Connect the RETURN test lead (white with
holder) into the RETURN terminal and screw
the protector bar into place, as shown below.
OUTPUT
Terminal
RETURN
Terminal
