GW Instek GPT-10000 Series User Manual

OPERATION
47

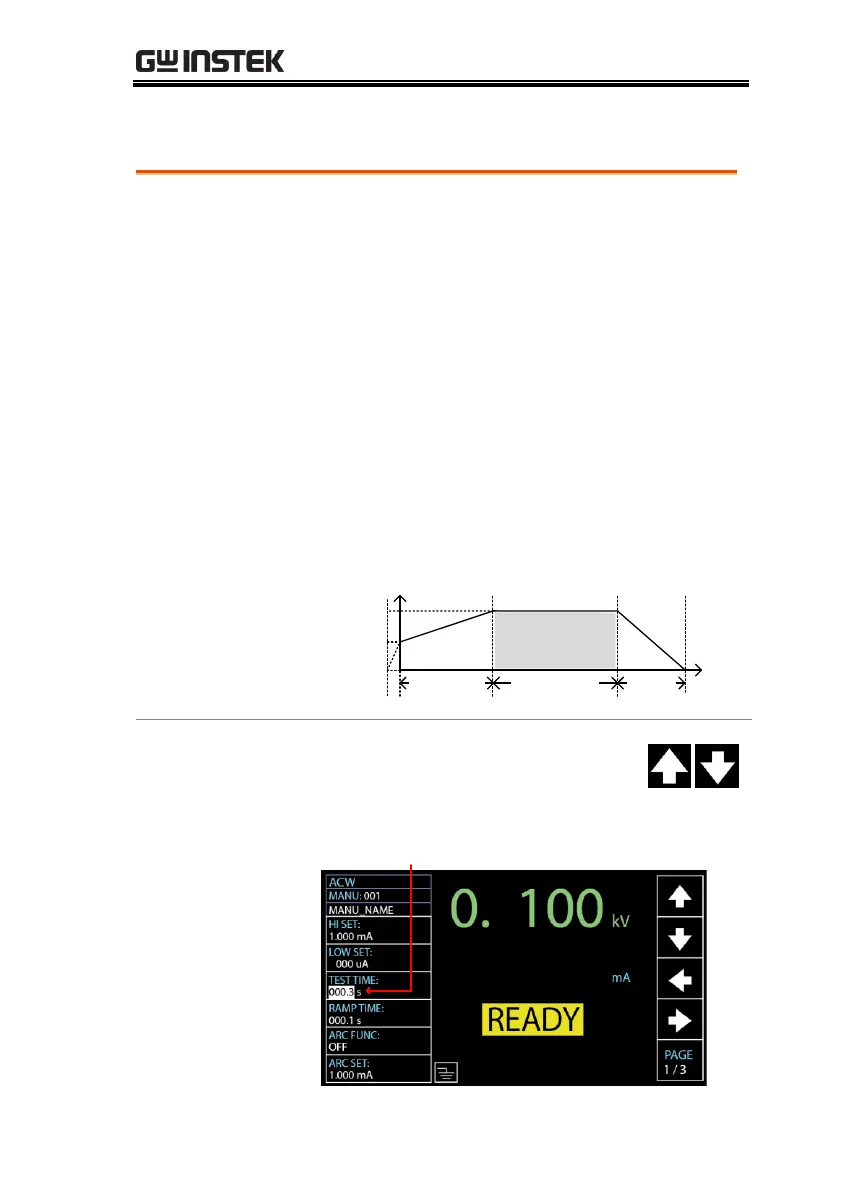

Setting the Test Time
Background
This setting is used to set the test time for a test.
The test time determines how long the test
voltage or current is applied to the DUT. This
test time does not include RAMP UP time or
RAMP DOWN time (note: GB and CONT do
not have RAMP UP or RAMP DOWN). The test
time can be set from 0.3 seconds to 999.9
seconds for ACW, DCW, IR, GB and CONT,
with a resolution of 0.1 seconds for all modes.
Also, the test time can be turned off when using
the ACW or DCW test functions.
Each test has a RAMP UP and RAMP DOWN
time (except GB and CONT), respectively. Refer
to page 49 & 51 for more details.
Output Voltage
Timing Chart
(Resistive load)
Test V
time
TEST TIME
RAMP UP
RAMP
DOWN
Initial V
(Adjustable)
Steps
1. Press the UP / DOWN arrow soft-
keys to bring the cursor to the
TEST TIME setting.
TEST TIME cursor
