GW Instek GPT-10000 Series User Manual

GPT-10000 Series User Manual
188

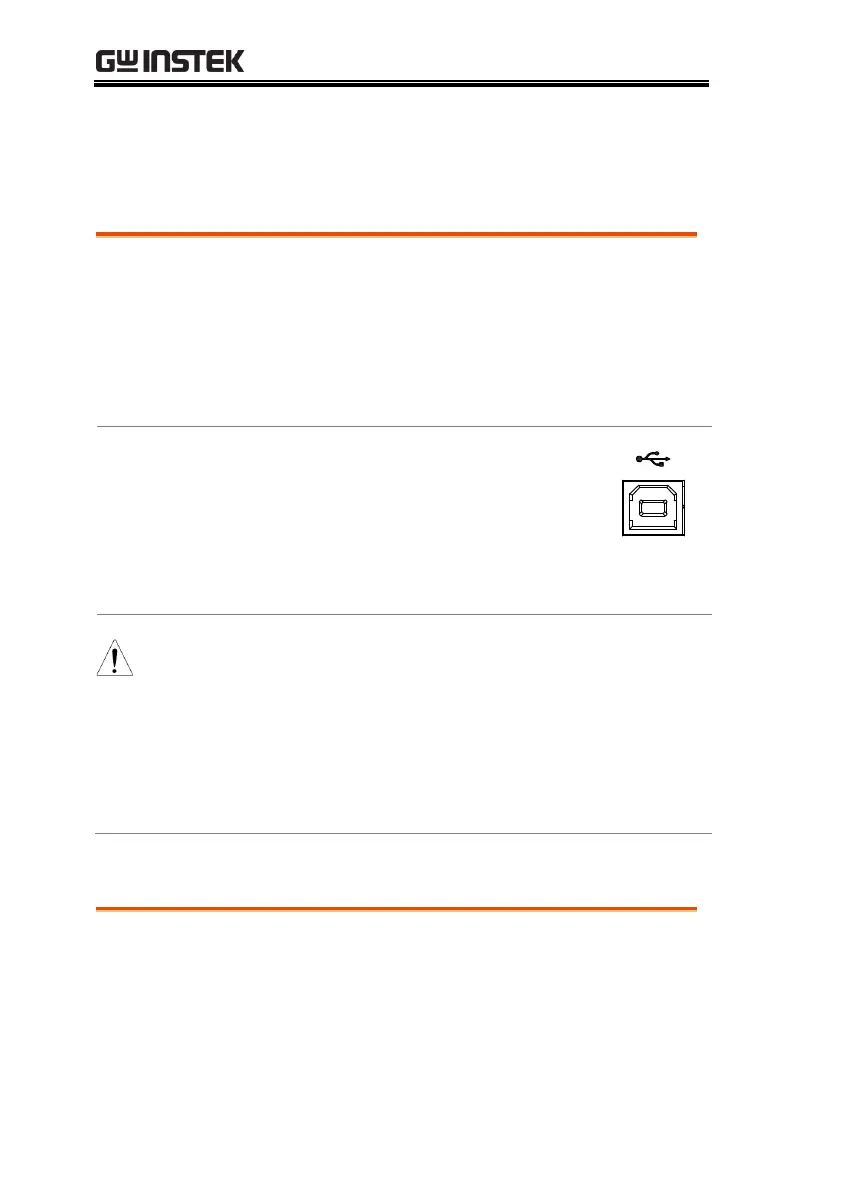

Interface Configuration
USB Remote Interface
USB
Configuration
PC side
connector
Type A, host
GPT-10000 side
connector
Rear panel Type B
USB Class
CDC (communications device
class) (VCP, Virtual Com Port)
Panel operation
1. Connect the USB cable to the rear
panel USB B-Type port.
2. Set the Interface to USB from the
SYSTEM mode.
Page 137
Note
When USB is used for remote control, an RS232
port is simulated. Check the Windows Device
Manager for the baud rate and other RS232
settings. Check the RS232 configuration below for
more details.
Note the baud rate is fixed to 115200 baud when
using the USB interface.
RS232 Remote Interface
RS232
Configuration
Connection
Null modem cable
Baud rate
9600, 19200, 38400, 57600,
115200
Parity
None
Data bits
8
