SIGNAL I/O Overview
Overview
The SIGNAL I/O port can be used to remotely
start/stop tests and monitor the test status of
the instrument.
The SIGNAL I/O port is also used for the
interlock function. Refer to page 186 for details.
The SIGNAL I/O port basically uses a DB-15
pin female connector.

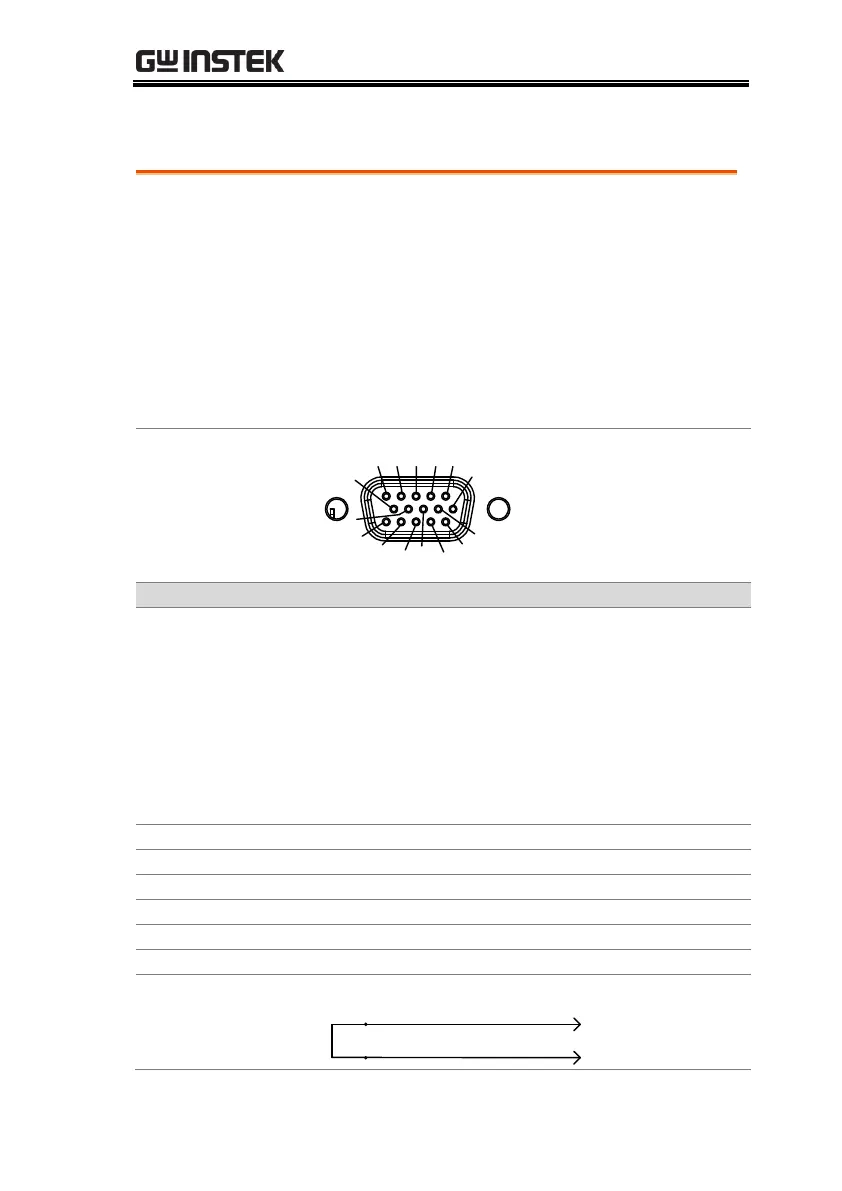

Pin Assignment
1
6
7
11
1213
14
15
8
9
2345
10
Pin name
Pin
Description
INTERLOCK1
1
When INTERLOCK is ON, a test is only allowed
to start when both INTERLOCK pins are shorted.
INTERLOCK2
2
INPUT_START
3
Start signal input
INPUT_STOP
4
Stop signal input
INPUT_COM
5
Common input line
NC
6
NC
OUTPUT_1
7
OUTPUT1 SIGNAL
OUTPUT_2
8
OUTPUT2 SIGNAL
OUTPUT_3
9
OUTPUT3 SIGNAL
OUTPUT_4
10
OUTPUT4 SIGNAL
OUTPUT_5
11
OUTPUT5 SIGNAL
NC
12
NC
NC
13
NC
NC
14
NC
OUTPUT_COM
15
Common output line
Interlock
connection
PIN 2 INTERLOCK2
PIN 1 INTERLOCK1
