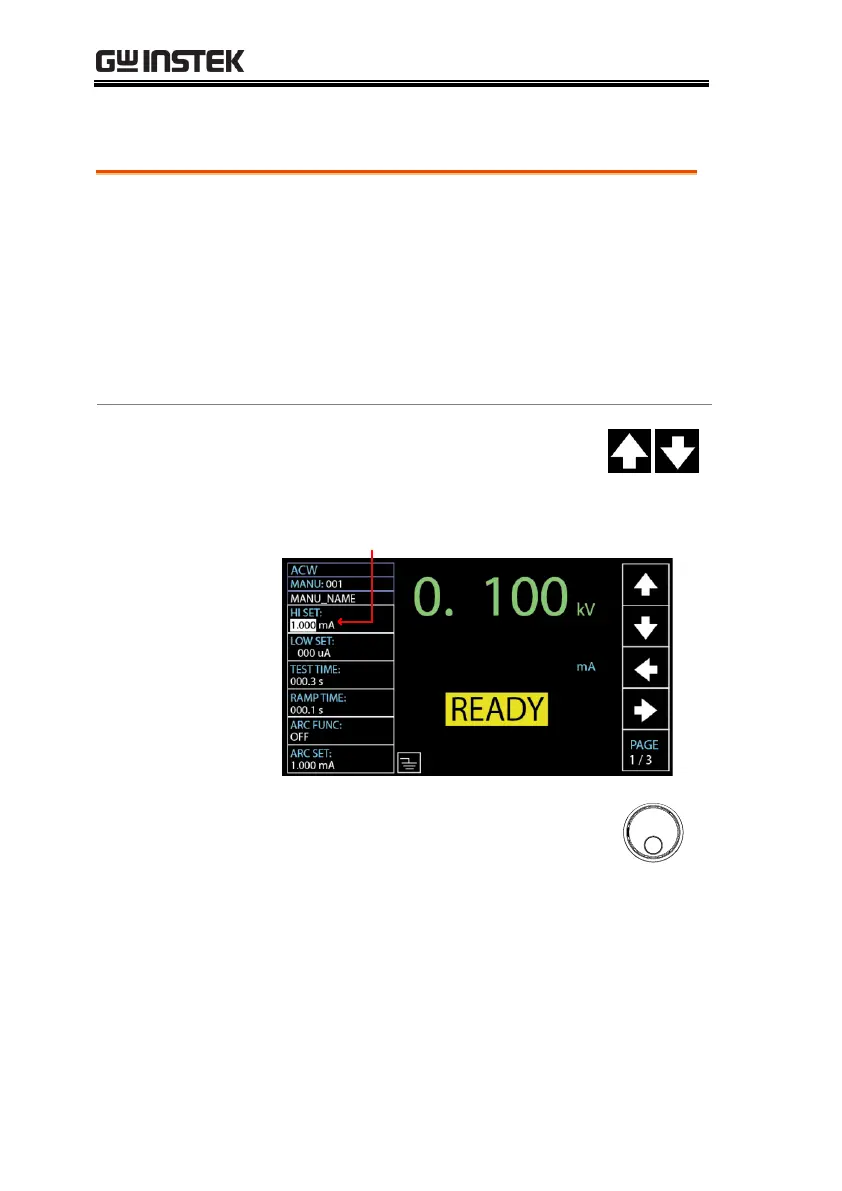

Setting the Upper and Lower Limits
Background
There is both a LOW and HI judgment setting.
When the measured value is below the LOW
SET setting, the test will be judged as FAIL.
When the value exceeds the HI SET setting the
test will be judged as FAIL. Any measurement
between the LOW SET and HI SET setting is
judged as PASS. The LOW SET limit cannot be
made greater than the HI SET limit.
Steps
1. Press the UP / DOWN arrow soft-
keys to bring the cursor to the HI
SET setting.
HI SET cursor
2. Use the scroll wheel to set the HI
SET limit.
ACW (HI)
DCW (HI)
IR (HI)
GB (HI)
CONT (HI)
001µA~42.00mA (GPT-12XXX)
001µA~110.0mA (GPT-15XXX)
001µA~11.00mA (12XXX/15012)
001µA~21.00mA (GPT-15XXX)
000.2MΩ~50.00GΩ, OFF
000.1mΩ~650.0mΩ
00.01Ω~80.00Ω
