GW Instek GPT-10000 Series - Setting a Reference Value

GPT-10000 Series User Manual
56

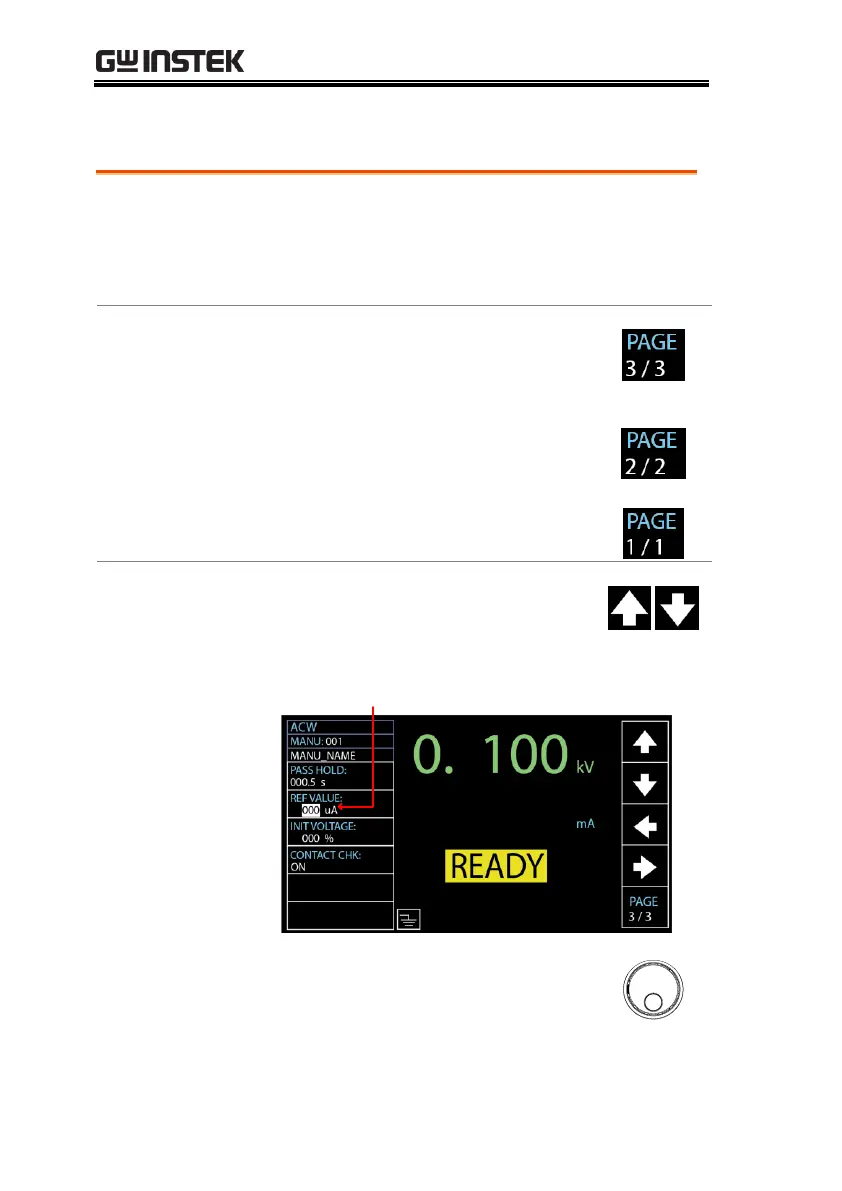

Setting a Reference Value
Background
The REF VALUE acts as an offset. The REF
VALUE is subtracted from the measured
current (ACW, DCW) or measured resistance
(IR, GB, CONT).
Steps
1. Press the PAGE soft-key to move to
the 3/3 page where REF VALUE
setting appears for ACW and DCW.
As for IR and GB, the REF VALUE
setting shows in the 2/2 page.
The REF VALUE setting appears in
the 1/1 page directly for CONT.
2. Press the UP / DOWN arrow soft-
keys to bring the cursor to the REF
VALUE setting.
REF VALUE cursor
3. Use the scroll wheel to set the REF
value.
