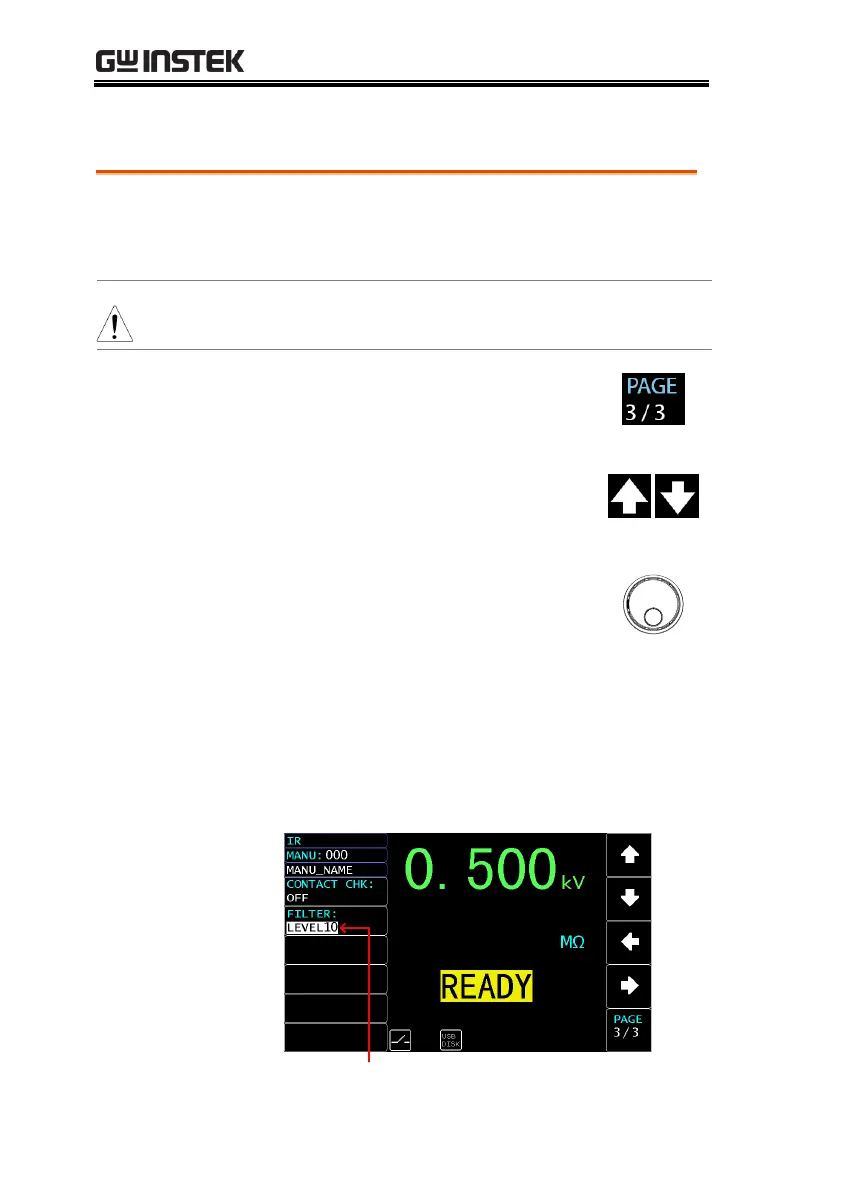

Setting IR Mode Filter
Background
The filter function of IR test is used to average
tests when unstable resistance issue occurs
under capacitive load test.
Note
Filter setting is Not available for GB test mode.
Steps
1. Press the PAGE soft-key to move to
the 3/3 page where FILTER setting
appears for IR test.
2. Press the UP / DOWN arrow soft-
keys to bring the cursor to the
FILTER setting.
3. Use the scroll wheel to select
options of FILTER setting.
FILTER
OFF, LEVEL 1 ~ 10
LEVEL 1
To average tests of
every 1 second.
LEVEL 10
To average tests of
every 10 seconds.
FILTER Setting LEVEL 10
