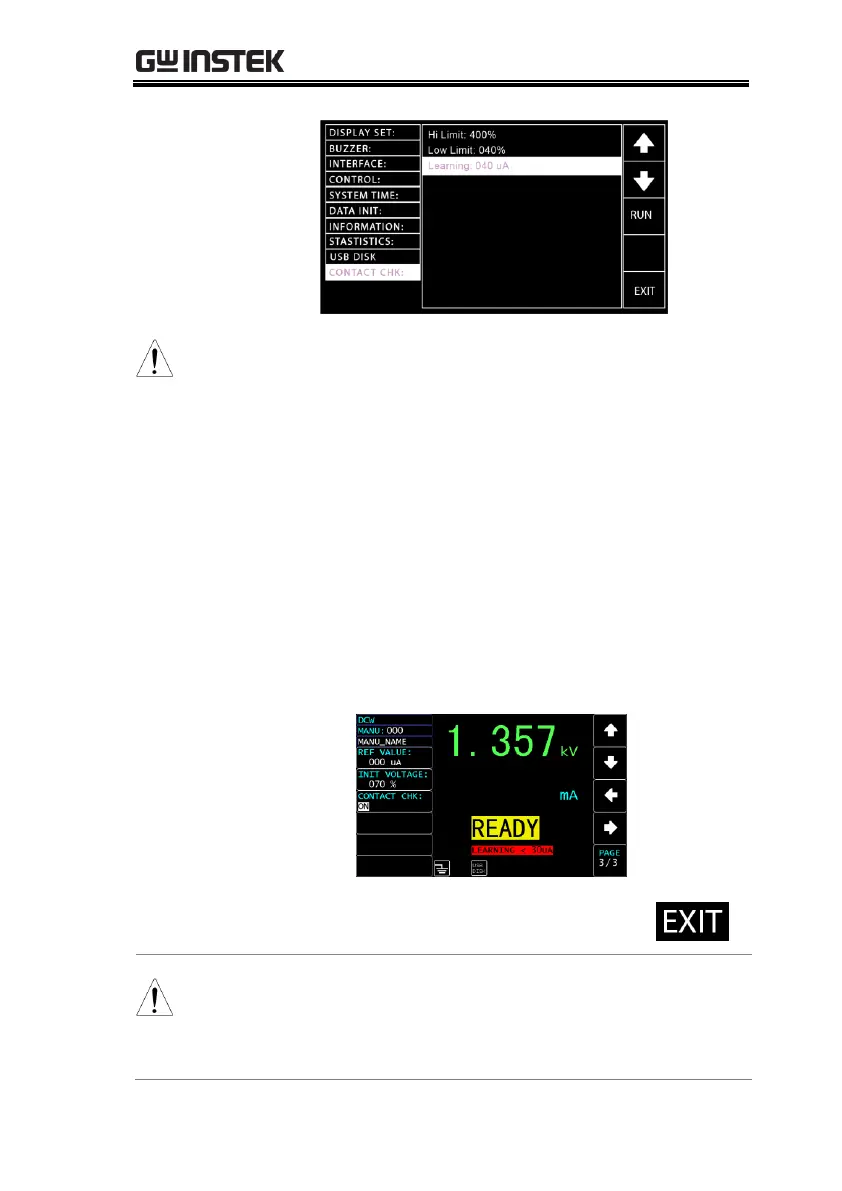

Prior to RUN the Learning process, be sure to
well set up test leads connection between the
GPT-10000 unit and the DUT.
When reference value, for example, is defined
as 40uA, and Hi and Low limits are set 400%
and 40%, respectively, the OPEN status will be
triggered when measured value is less than
16uA. The SHORT status, by contrast, will be
triggered while measured value is above 160uA.
When the reference value is learned below
30uA, the warning message will be shown as
following and the CONTACT CHK function will
be invalid even though CONTACT CHK is
turned ON in MANU mode. Refer to page 81
for details of CONTACT CHK setting.
Changes in CONTACT CHK setting are saved instantly.
Both Limit and Learning settings of GPT-15012 unit
are available only under DCW test mode. Refer to
page 83 for details.
