GW Instek GPT-10000 Series User Manual

OPERATION
67
second of test time at the earliest manner,
regardless of the set test time.
The TIMER mode will run a test in a full course
completely in accordance with the set test time,
whether the final judgment is PASS or FAIL.
Note
If the DUT is under the situation of abnormal
measurement, e.g., short circuit, the FAIL
judgment of SHORT warning, though TIMER is
set, will appear in the early manner regardless
of the set test time.

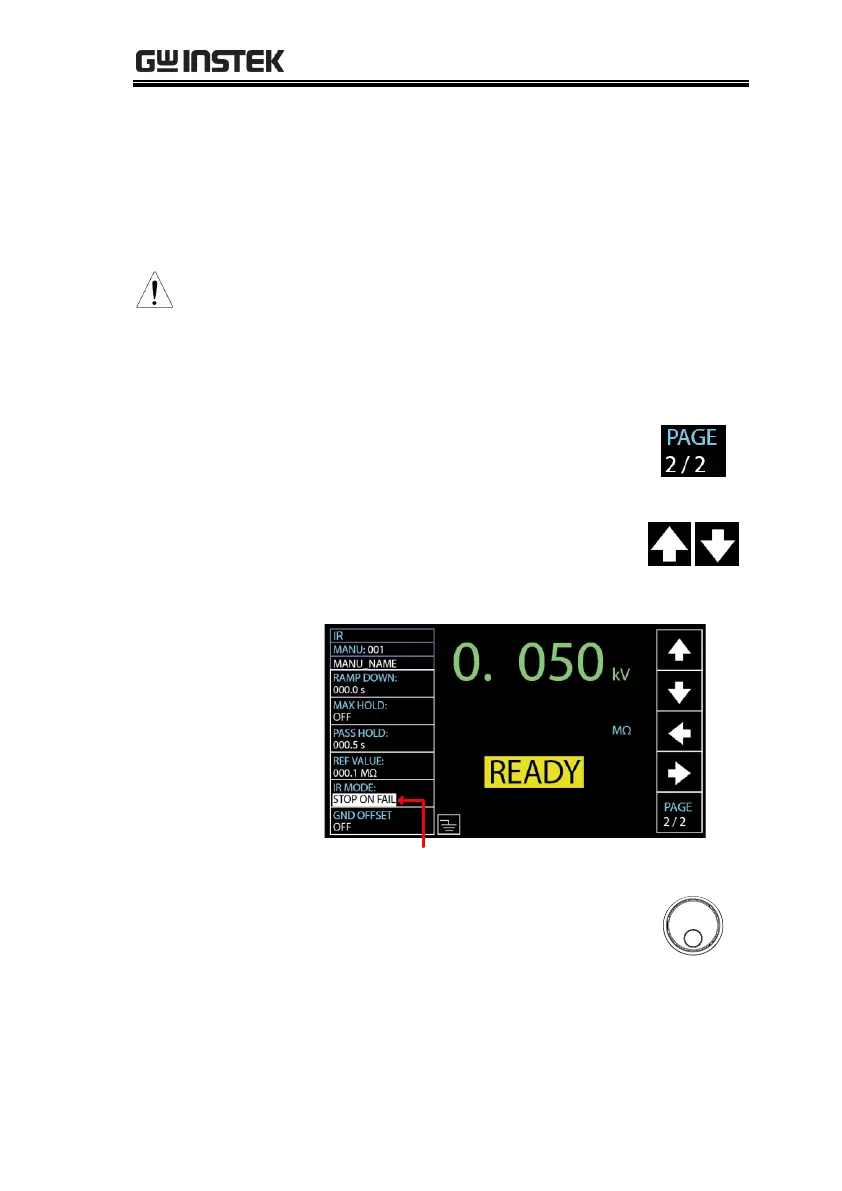

Steps
1. Press the PAGE soft-key to move to
the 2/2 page where IR MODE
setting appears for IR test.
2. Press the UP / DOWN arrow soft-
keys to bring the cursor to the IR
MODE setting.
IR MODE cursor
3. Use the scroll wheel to set the IR
MODE.
IR MODE
STOP ON FAIL
STOP ON PASS
TIMER
