7-29

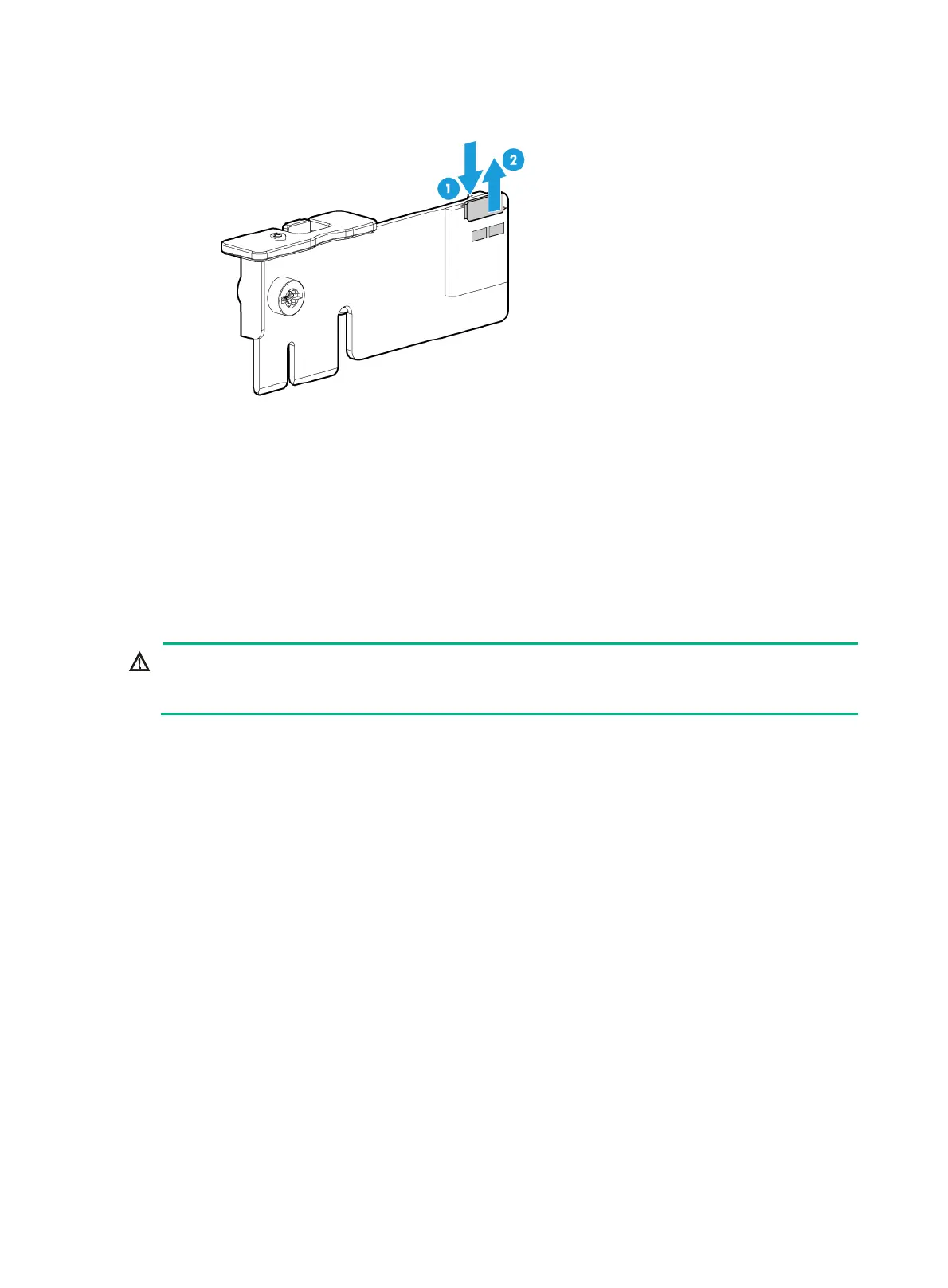

Figure 7-33 Removing an SD card
5. Install a new SD card. For more information, see "Installing SD cards."
6. Install the management module. For more information, see "Installing the management
module."
7. Reconnect the cables to the management module.
8. Connect the power cord. For more information, see "Connecting the power cord."
9. Powe
r on the server. For more information, see "Powering on the server."
Replacing the dual SD card extended module
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
To replace the dual SD card extended module:
1. Power off the server. For more information, see "Powering off the server."
2. Disco
nnect all the cables from the management module.
3. Remove the management module. For more information, see "Removing the management
module."
4. Press the clip on the dual SD card extended module, as shown by callout 1 in Figure 7-34. Pull
the module out of the connector, and then release the clip.
