11-29

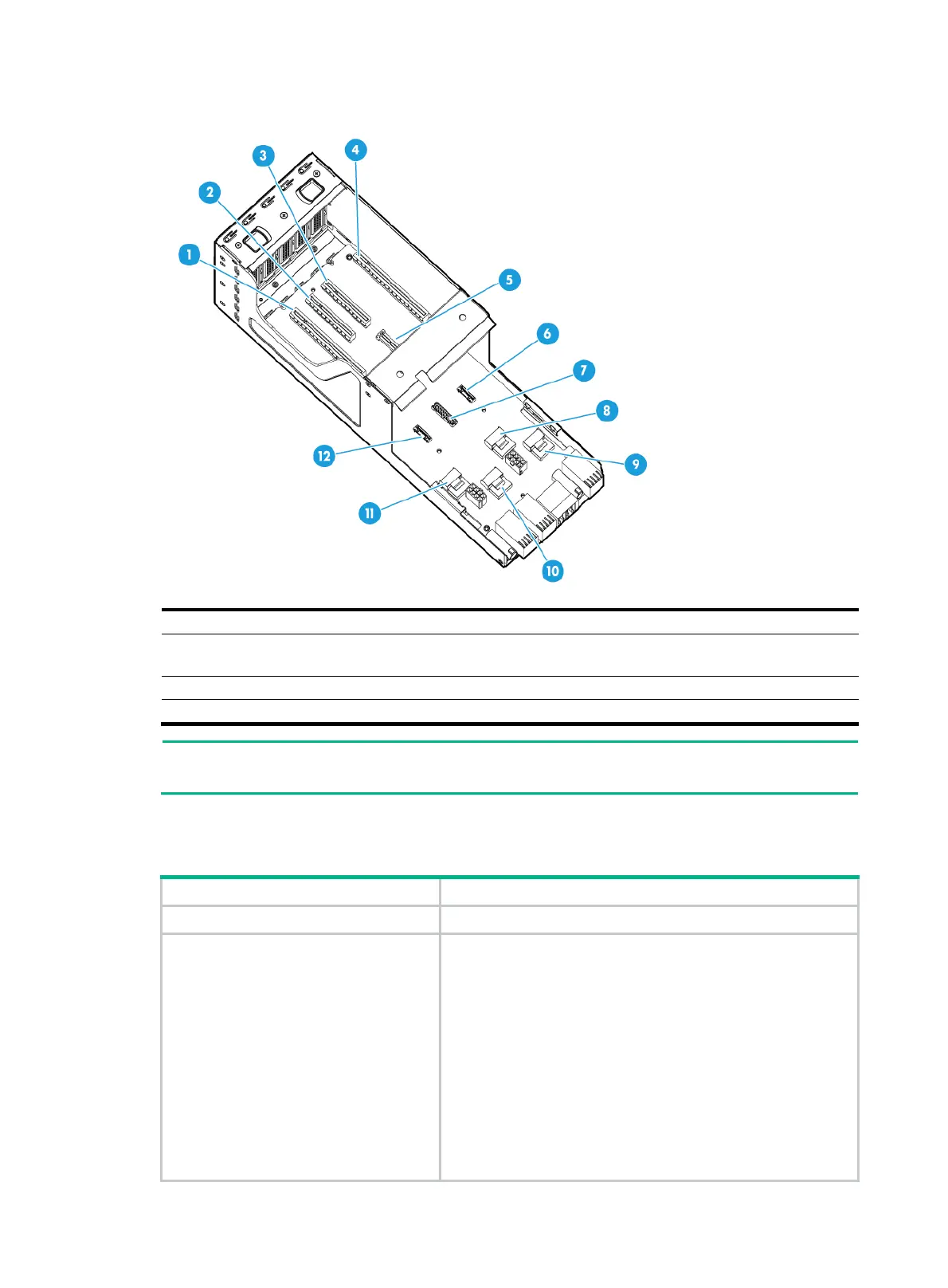

Figure 11-8 RS-4*FHHL-G3 riser card
(1) PCIe slot 2 (2) PCIe slot 3 (3) PCIe slot 4
(4) PCIe slot 6
(5) mLOM Ethernet adapter
connector
(6) Supercapacitor connector 2
(7) NCSI connector (8) SAS port B2 (×4 SAS ports) (9) SAS port B1 (×4 SAS ports)
(10) SAS port A2 (×4 SAS ports) (11) SAS port A1 (×4 SAS ports) (12) Supercapacitor connector 1
NOTE:
PCIe slot 4 is unavailable if an mLOM Ethernet adapter is installed.
RS-6*FHHL-G3-1
Item Specifications
PCIe riser bay Bay 1 or 3 at the server rear
PCIe slots
• PCIe riser bay 1:
{ Slots 1 through 3: PCIe3.0 ×8 (8, 4, 2, 1) for processor
1 in compute module 1
{ Slots 4 through 6: PCIe3.0 ×8 (8, 4, 2, 1) for processor
1 in compute module 2
• PCIe riser bay 3:
{ Slots 1 through 3: PCIe3.0 ×8 (8, 4, 2, 1) for processor
2 in compute module 1
{ Slots 4 through 6: PCIe3.0 ×8 (8, 4, 2, 1) for processor
2 in compute module 2
NOTE:
The numbers in parentheses represent link widths.
