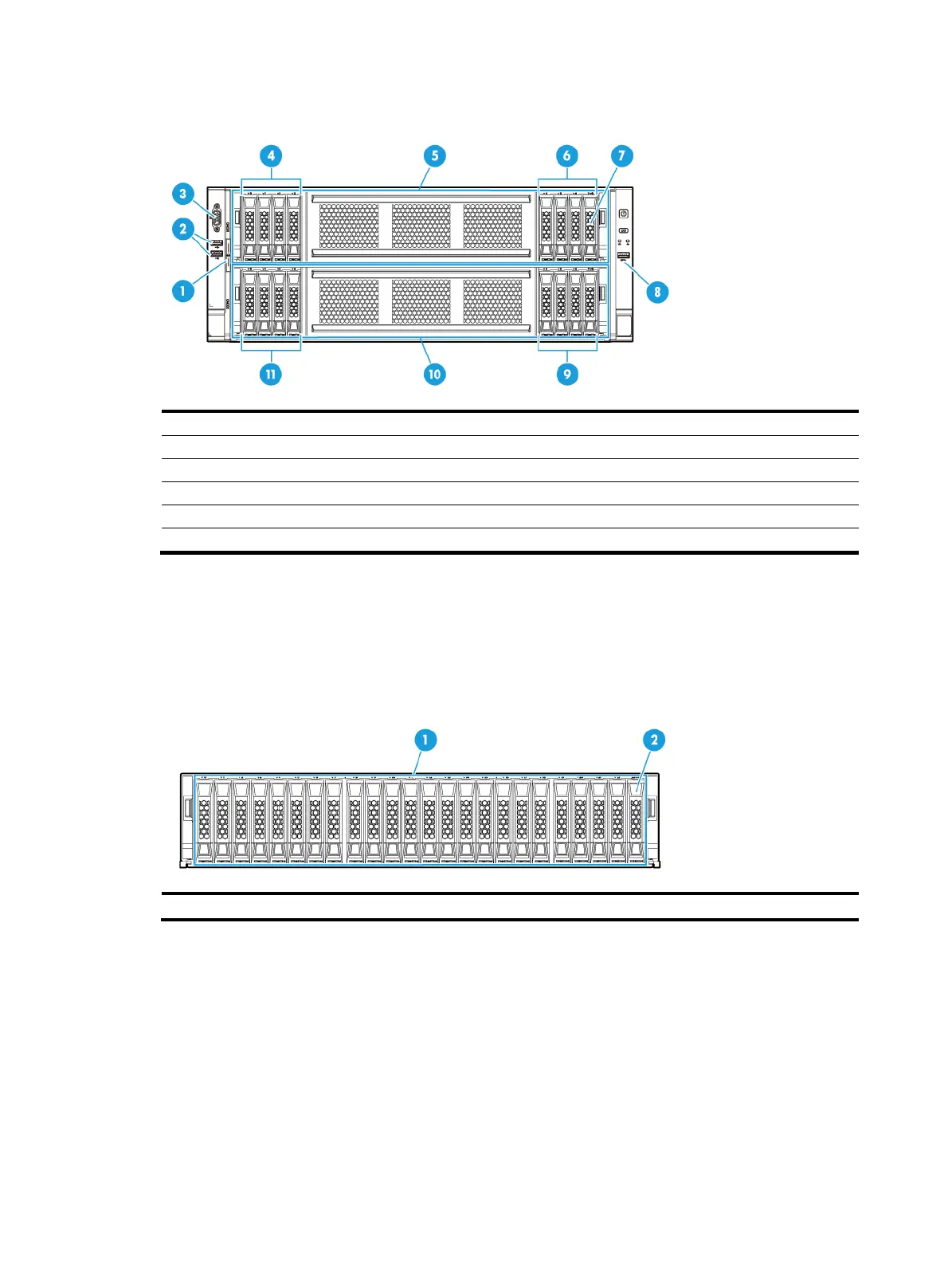

Figure 10-5 16SFF front panel
(1) Serial label pull tab module (2) USB 2.0 connectors
(3) VGA connector (4) Drive cage bay 1
(5) Compute module 1 (6) Drive cage bay 2
(7) SAS/SATA drive, NVMe drive, or diagnostic panel (optional)
(8) USB 3.0 connector (9) Drive cage bay 4
(10) Compute module 2 (11) Drive cage bay 3
Front panel view of a compute module
Figure 10-6 and Figure 10-7 show the front panel views of 24SFF and 8SFF compute modules,
respectively.
Figure 10-6 24SFF compute module front panel
(1) 24SFF SAS/SATA drives (2) Diagnostic panel (optional)
