11-34
Name Picture Installation location Usage scenario
GPU module air
baffle
Above the DIMMs between the
two processors.
A GPU module is
installed in the compute
module.
NOTE:
For more information about the air baffle locations, see "Main board components."
Power supply air baffle
The server comes with one power supply air baffle installed over the fan modules for heat dissipation
of the power supplies. For more information about the air baffle location, see "Fan modules."

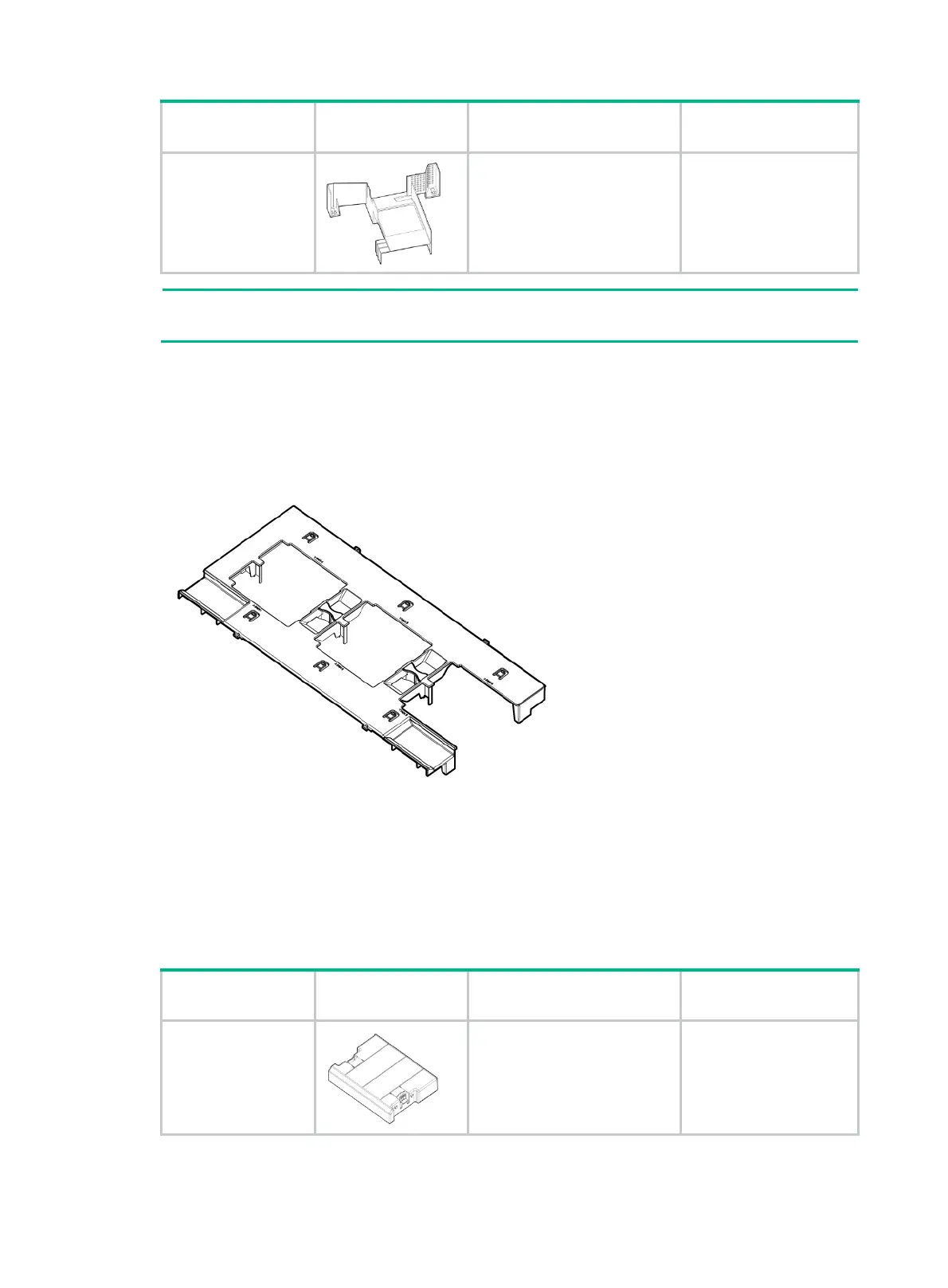

Figure 11-12 Power supply air baffle
Rear riser card air baffles
Each riser card at the server rear comes with a riser card air baffle installed over the four SAS
connectors. An RS-4*FHHL-G3 riser card also comes with a GPU module air baffle. For more
information about the air baffle location, see "Riser cards."
Table 11
-14 Rear riser card air baffles
Name Picture Installation location Functions
Riser card air baffle
At the left of the connectors on
each server riser card.
Provides ventilation
aisles in rear riser cards.
