7-24

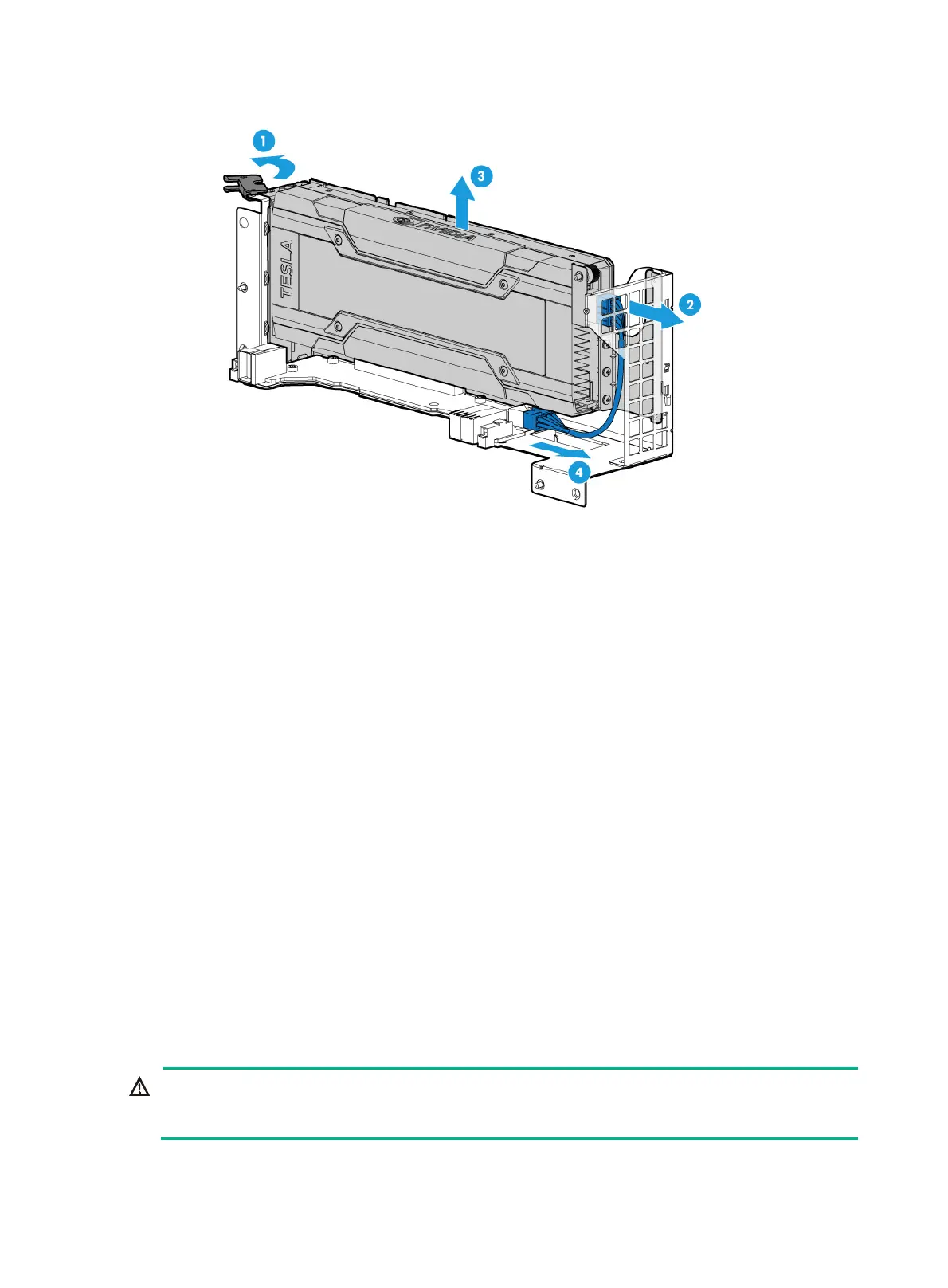

Figure 7-29 Removing a GPU module
7. Install a new GPU module. For more information, see "Installing a GPU module in a compute
module."
8. Install the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
9. Install the compute module. For more information, see "Installing a compute module."
10. Install the removed security bezel. For more information, see "Installing the security bezel."
11. Connect the power cord. For more information, see "Connecting the power cord."
12. Powe
r on the server. For more information, see "Powering on the server."
Replacing a GPU module at the server rear
1. Power off the server. For more information, see "Powering off the server."
2. Disconnect external cables from the riser card, if any.
3. Remove the rear riser card and the GPU module. For more information, see "Replacing a riser
card and P
CIe module at the server rear."
4. Install a new GPU module to the riser card and install the riser card. For more information, see
"Installing riser cards and PCIe modules at the server rear."
5. Re
connect the external cables to the riser card.
6. Connect the power cord. For more information, see "Connecting the power cord."
7. Powe
r on the server. For more information, see "Powering on the server."
Replacing an Ethernet adapter
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
