6-9

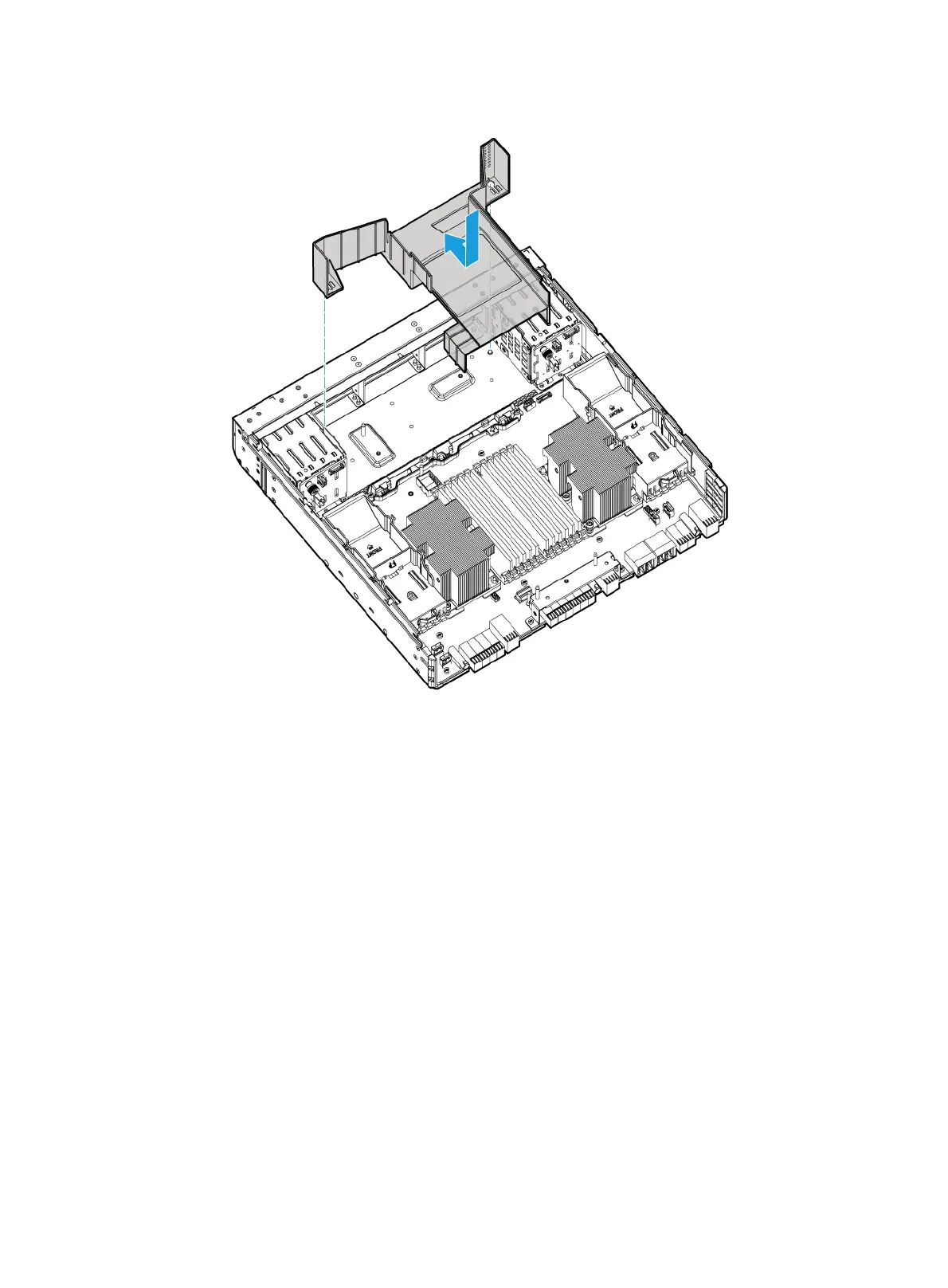

Figure 6-11 Installing the GPU module air baffle
7. Install a riser card and a PCIe module in the compute module. For more information, see
"Installing a riser card and a PCIe module in a compute module."
8. Install the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
9. Install the compute module. For more information, see "Installing a compute module."
10. Install the removed security bezel. For more information, see "Installing the security bezel."
11. Connect the power cord. For more information, see "Connecting the power cord."
12. Powe
r on the server. For more information, see "Powering on the server."
Installing the GPU module air baffle to a rear riser card
The GPU module air baffle hinders GPU module installation. Make sure GPU modules have been
installed to the rear riser card before you install the GPU module air baffle.
To install the GPU module air baffle to a rear riser card:
1. Power off the server. For more information, see "Powering off the server."
2. Disco
nnect external cables from the riser card, if the cables hinder air baffle installation.
3. Remove the riser card. For more information, see "Replacing a riser card and PCIe module at
the serve
r rear."
4. Remove the riser card air baffle.
