8-1
8 Connecting internal cables
Properly route the internal cables and make sure they are not squeezed.
Connecting drive cables
Connecting drive cables in compute modules
24SFF SAS/SATA drive cabling
Connect SAS port 1 on the 24SFF drive backplane to SAS port A1 on the main board and connect
SAS port 2 to SAS port A2, as shown in Figure 8-1. For informatio
n about the main board layout, see
"Main board components."

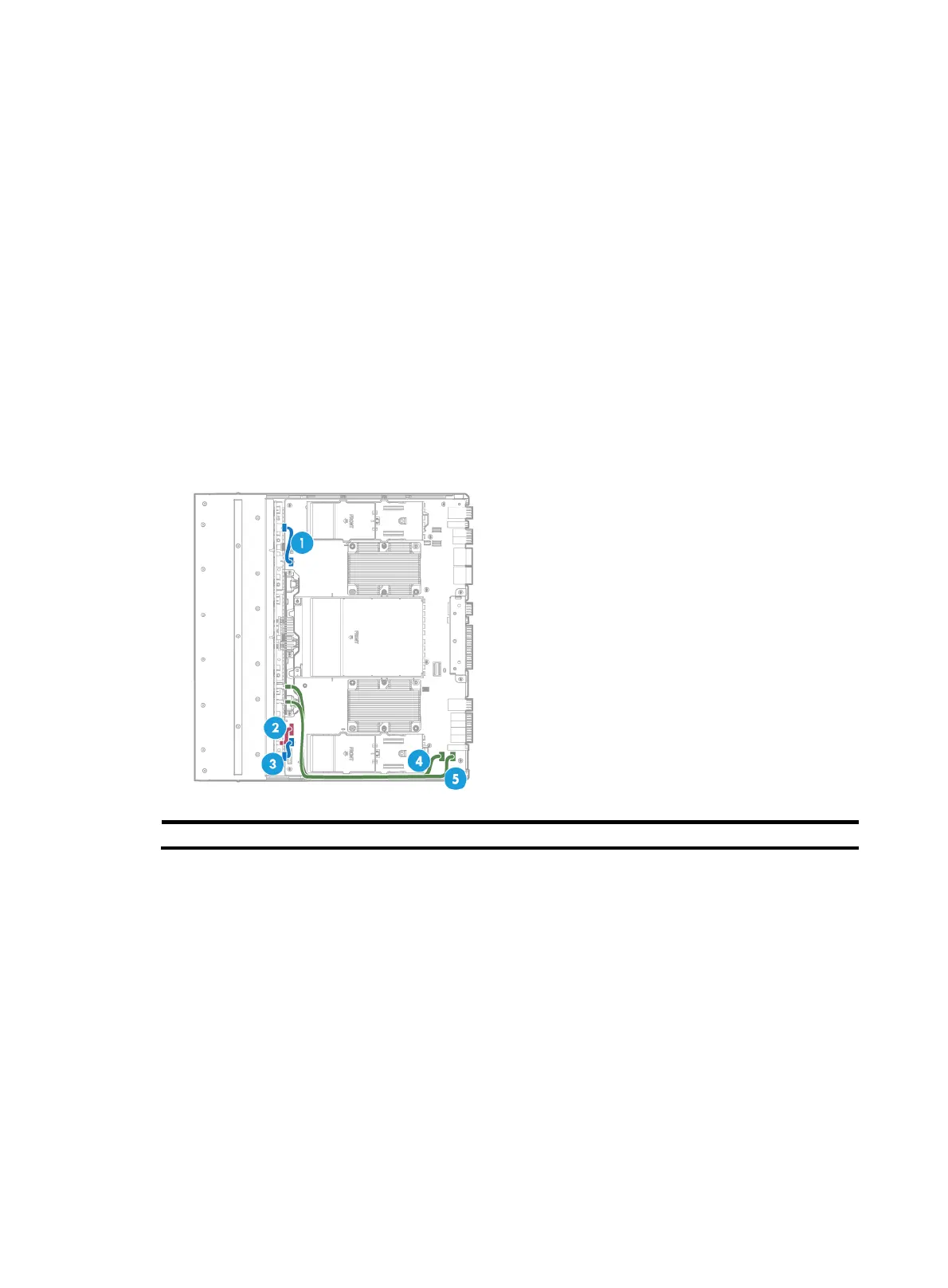

Figure 8-1 24SFF SAS/SATA drive backplane connected to the main board
(1) and (3) Power cords (2) AUX signal cable (4) and (5) SAS/SATA data cables
